RDL®

D-TPS1A

Active Single-Pair Sender - Twisted Pair Format-A - XLR microphone input with phantom

SKU: D-TPS1A
  • Balanced Microphone XLR Input with Phantom
  • Switch-Selectable Mic Gain on Rear Panel
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through on RJ45 Jacks
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Daisy-Chain with Single-Pair or Two-Pair Senders
  • Studio-Quality Precision Active Balanced Circuitry
  • How to Customize
    Recommended Power Supply ( Not Included )
    PS-24AS (USA)PS-24AX (International)

    Description

    The D SERIES-TPS1A modules are single-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The -TPS1A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPS1A features a white front-panel laminate with gray lettering that matches RDL Decora©-style remote controls. The DB-TPS1A features a black front-panel laminate. The DS-TPS1A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations.

    APPLICATION: The D SERIES-TPS1A modules feature an XLR microphone input. The module provides IEC 24 V phantom and accepts input signals from both dynamic and condenser microphones. The input signal is amplified using a studio-quality microphone preamplifier optimized for normal operating levels. The rear-panel GAIN switch is normally set by the installer for NORM (normal) gain. If consistently low mic levels are expected, this switch may be set to the HIGH gain position. The pre-amplified microphone source is routed to one output cable pair selected during installation using a rear-panel switch.

    These modules drive only one cable pair, therefore they accept signals and power from other mic-level or line-level Format-A senders. The D SERIES-TPS1A modules have a second RJ45 jack for these input cables. Two other single-pair senders may be chained with the -TPS1A, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS1A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C. The power pair and all three audio pairs are fed through both rear-panel RJ45 jacks.

    The D SERIES-TPS1A may be powered directly from a 24 Vdc power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The -TPS1A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED.

    RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products.

    Specifications

    Input:1.2 kΩ Balanced with 24 Vdc phantom (IEC 61938: 2013)
    Input Connection:XLR
    Input Level:-45 to -65 dBu Balanced; Maximum: -40 dBu (HIGH Gain), -28 dBu (NORM Gain)
    Format-A Signal Pair Used:Switch-selectable A, B, or C
    Gain:50 dB (NORM) or 63 dB (HIGH), Switch-selectable on rear panel
    Format-A Input:RJ45 (not applicable to EM-)
    Output:RDL TP Format-A
    Output Connection:RJ45 (Models D-, DS-); Detachable Terminal Block (Model EM-)
    Frequency Response:100 Hz to 30 kHz (± 1 dB); integral low-cut filter -10 dB @ 30 Hz
    THD+N:< 0.1% (80 Hz to 20 kHz)
    Noise below +4 dBu:< -80 dB (NORM Gain), < -70 dB (HIGH Gain)
    Headroom above +4 dBu:> 18 dB
    CMRR:> 60 dB (HIGH Gain 50 Hz to 150 Hz), > 65 dB (NORM Gain 50 Hz to 150 Hz)
    Indicator:Power In
    Power Connections (2):Detachable terminal block; RJ45
    Ambient Operating Environment:0° C to 50° C
    Power Requirement:24 Vdc @ 65 mA plus connected loads

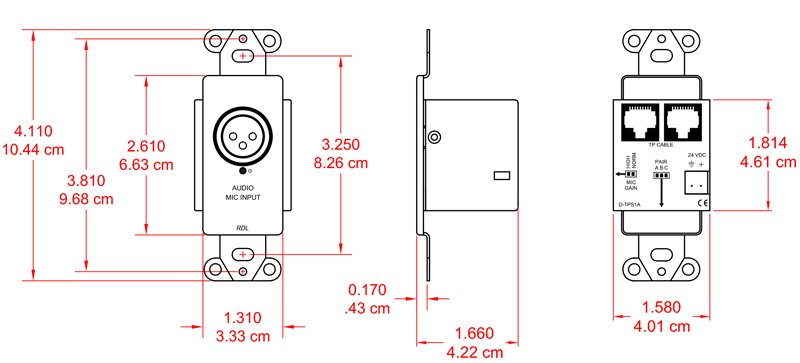

    Dimensions:1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
    Mounting Box Minimum Depth:2.4" (Models D-, DS-); 39 mm (Model EM-)
    Package Type:Cardboard Box
    Tariff code:8543.70.9860
    WEEE weight:0.235 lbs.
    Shipping Weight:0.38 lbs.
    Package Dimensions:3.625 x 4.625 x 2.125 in.
