EU-BTN21

Bluetooth® Audio Dante Network Interface

SKU: EU-BTN21
  • Bluetooth Audio Input for Dante or AES67 Networked System
  • Bluetooth Stereo or Mono Sum Feeds Two Network Channels
  • Return Audio Talk Channel from Dante Network to Bluetooth-Connected Device
  • Intuitive Single Button Bluetooth Pairing with LED Status Indication
  • Bluetooth Functions are Controllable in RDL CONSOLE Software
  • Q-SYS Plug-In Available for Configuring in Q-SYS Environment
  • Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
  • Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
  • Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
  • White Faceplate Laminate is Installed, Field-Replaceable Black Laminate Included
  • European 45 mm x 45 mm Chassis Fits in a Standard 60 mm Deep EU Junction Box
  • Module is PoE Powered
Datasheet RDL® Console Software
Q-SYS Plugin: D / DD-BTN
Category: Tag:

Description

The EU-BTN21 modules are Dante or AES67 networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio. The modules are configurable using RDL CONSOLE software. The module multicasts Bluetooth media data and module function status for use with RDL CONSOLE software and other compatible software. Stereo or summed mono audio is available to users through two Dante network channels. Stereo or mono audio may be selected using RDL CONSOLE software or by remote control commands. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.

The installer can customize the module Bluetooth name using RDL CONSOLE software. The default module name is EU_BTN21_G2. Additional settings include the LED dim intensity and the timeout to dim the LEDs. The default timeout is 30 seconds.

The EU-BTN21 modules are PoE-powered.

High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.



Note: Black cover plate not included.


Recommended unit: Legrand Matt Black Mosaic Cover Plate (Part No: 0 790 42L)

Specifications

TYPICAL PERFORMANCE
Network Connector:RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:Dante or AES67
Transmission Rate:100 Mbps
Sample Rates Supported:48 kHz
Bit Depth Supported: 24 bits
Audio Operating Levels:-20 dBFS = +4 dBu (balanced);
-20 dBFS = -10 dBV (unbalanced), nominal

Common

Indicators (Front Panel):Bluetooth®, Network Sync
Power Connection:PoE (RJ45)
Ambient Operating Environment:0° C to 40° C
Power Requirements:PoE
PoE:Class 0, IEEE 802.3af
Dimensions: 1.77” (4.50 cm) W;
1.77” (4.50 cm) H;
1.86” (4.73 cm) D
Package Type:Cardboard Box
Package Dimensions:2.25 x 4.3 x 4.9 in.
Shipping Weight:0.520lb.
WEEE weight:0.375 lbs.
US Tariff Code:8543.70.9100
EU Tariff Code:85437006

Related Products

Dante®
  • Dante interface that converts four line-level XLR inputs to network audio channels.

    AV-LN4

    Four Channel Line Level Audio to Dante Interface

  • Dante to Stereo Headphone Amplifier

    AV-NH1

    Dante to Stereo Headphone Amplifier

  • 2 channel Dante Audio Interface

    AV-NL2

    Dante to Two Channel Line/Mic Audio Interface

  • AV-NL4

    AV-NL4

    Dante to Four Channel Line/Mic Audio Interface

  • Metal microphone to Dante interface box

    AV-XMN4

    Four Channel Mic to Dante Interface

  • D-BTN21

    D-BTN21

    Bluetooth® Audio Dante Network Interface

    Customizable Text

  • D-NVC2

    D-NVC2

    Dante / AES67 Network Volume Control

  • D-RN02

    D-RN02

    Wall-Mounted Mic/Line Dante Interface 0x2

    Customizable Text

  • D-RN12

    D-RN12

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 1x2

    Customizable Text

  • D-RN22

    D-RN22

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

    Customizable Text

  • D-RN2ML

    D-RN2ML

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

    Customizable Text

  • DB-BTN21

    DB-BTN21

    Bluetooth® Audio Dante Network Interface

    Customizable Text

  • DB-NVC2

    DB-NVC2

    Dante / AES67 Network Volume Control

  • DB-RN02

    DB-RN02

    Wall-Mounted Mic/Line Dante Interface 0x2

    Customizable Text

  • DB-RN12

    DB-RN12

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 1x2

    Customizable Text

  • DB-RN22

    DB-RN22

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

    Customizable Text

  • DB-RN2ML

    DB-RN2ML

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

    Customizable Text

  • DD-BN22

    DD-BN22

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DD-BN2M

    DD-BN2M

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DD-BN2ML

    DD-BN2ML

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DD-BN31

    DD-BN31

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

    Customizable Text

  • DD-BN40

    DD-BN40

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • DD-BTN44

    DD-BTN44

    Wall-Mounted Bi-Directional Line-Level and Bluetooth® Audio Dante Interface

    Customizable Text

  • DD-RN31

    DD-RN31

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

    Customizable Text

  • DD-RN40

    DD-RN40

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • DD-RN42

    DD-RN42

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • Black Wall-Mounted 2x2 Dante Interface

    DDB-BN22

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DDB-BN2M

    DDB-BN2M

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DDB-BN2ML

    DDB-BN2ML

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • Wall-Mounted Bi-Directional Mic/Line Dante Interface

    DDB-BN31

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

    Customizable Text

  • DDB-BN40

    DDB-BN40

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • Black Wall Mounted Dante Bluetooth end point

    DDB-BTN44

    Wall-Mounted Bi-Directional Line-Level and Bluetooth® Audio Dante Interface

    Customizable Text

  • Black Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

    DDB-RN31

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

    Customizable Text

  • DDB-RN40

    DDB-RN40

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • DDB-RN42

    DDB-RN42

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • DDS-BN22

    DDS-BN22

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DDS-BN2M

    DDS-BN2M

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DDS-BN2ML

    DDS-BN2ML

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2 x 2

    Customizable Text

  • DDS-BN31

    DDS-BN31

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

    Customizable Text

  • DDS-BN40

    DDS-BN40

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • Stainless Steel Finish Dante Bluetooth interface

    DDS-BTN44

    Wall-Mounted Bi-Directional Line-Level and Bluetooth® Audio Dante Interface

    Customizable Text

  • DDS-RN31

    DDS-RN31

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

    Customizable Text

  • DDS-RN40

    DDS-RN40

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • DDS-RN42

    DDS-RN42

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 2

    Customizable Text

  • DS-BTN21

    DS-BTN21

    Bluetooth® Audio Dante Network Interface

    Customizable Text

  • DS-NVC2

    DS-NVC2

    Dante / AES67 Network Volume Control

  • DS-RN02

    DS-RN02

    Wall-Mounted Mic/Line Dante Interface 0x2

    Customizable Text

  • DS-RN12

    DS-RN12

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 1x2

    Customizable Text

  • DS-RN22

    DS-RN22

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

    Customizable Text

  • DS-RN2ML

    DS-RN2ML

    Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

    Customizable Text

  • FP-NML2

    FP-NML2

    Network to Mic/Line Interface

  • FP-NML2P

    FP-NML2P

    Network to Mic/Line Interface

  • FP-NML2V

    FP-NML2V

    Network to Mic/Line Interface with VCA

  • FP-NML2VP

    FP-NML2VP

    Network to Mic/Line Interface with VCA

  • RU-BNF

    RU-BNF

    Format-A Bi-Directional Network Interface

  • RU-BNFP

    RU-BNFP

    Format-A Bi-Directional Network Interface

  • RU-FN

    RU-FN

    Format-A to Network Interface

  • RU-FNP

    RU-FNP

    Format-A to Network Interface

  • RU-LB2

    RU-LB2

    Line-Level Bi-Directional Network Interface

  • Line-Level Bi-Directional Dante Interface

    RU-LB2P

    Line-Level Bi-Directional Dante Interface

  • RU-LB4

    RU-LB4

    Line-Level Bi-Directional Network Interface

  • Line-Level Bi-Directional Network Interface

    RU-LB4P

    Line-Level Bi-Directional Network Interface

  • RU-MLB2

    RU-MLB2

    Mic/Line Bi-Directional Network Interface

  • Mic/Line Bi-Directional Network Interface

    RU-MLB2P

    Mic/Line Bi-Directional Network Interface

  • Dante 4x4 Audio Interface

    RU-MLB4

    Mic/Line Bi-Directional Network Interface

  • Mic/Line Bi-Directional Dante Interface

    RU-MLB4P

    Mic/Line Bi-Directional Network Interface

  • RU-NFD

    RU-NFD

    Network to Format-A Interface/Distributor

  • RU-NFDP

    RU-NFDP

    Network to Format-A Interface/Distributor

  • RU-NL2

    RU-NL2

    Network to Line Level Interface

  • RU-NL2P

    RU-NL2P

    Network to Line Level Interface

  • RU-NL4

    RU-NL4

    Network to Line Level Interface

  • RU-NL4P

    RU-NL4P

    Network to Line Level Interface

  • Dante Mixing Processor

    RU-NMP44

    Network Mixing Processor - 4x4

  • Bidirectional Unbalanced Stereo Dante Interface

    SF-BNC2

    Bidirectional Unbalanced Stereo Audio Network Interface

  • Digital Audio to Dante Interface

    SF-DN4

    Digital Audio to Network Interface

  • SF-ND2

    SF-ND2

    Network to Digital Audio Interface

  • Dante headphone amplifier

    SF-NH1

    Dante to Stereo Headphone Amplifier

  • SF-NL2

    SF-NL2

    Network to Audio Interface

  • SF-NP100A

    SF-NP100A

    Network to 100 W Mono Audio Amplifier - 70 V or 100 V

  • Dante 16 W Mono Audio Amplifier

    SF-NP16E

    PoE+ Dante to 16 W Mono Audio Amplifier - 70 V or 100 V

  • SF-NP35E

    SF-NP35E

    PoE++ Network to 35 W Mono Audio Amplifier - 70 V or 100 V

  • SF-NP40D

    SF-NP40D

    Network to 40 W Stereo Power Amplifier

  • SF-NP50A

    SF-NP50A

    Network to 50 W Mono Audio Amplifier - 70 V or 100 V

  • SF-UN1

    SF-UN1

    USB to Dante Network Interface

  • Four Channel Dante Interface

    SF-XMN4

    Microphone to Dante Interface

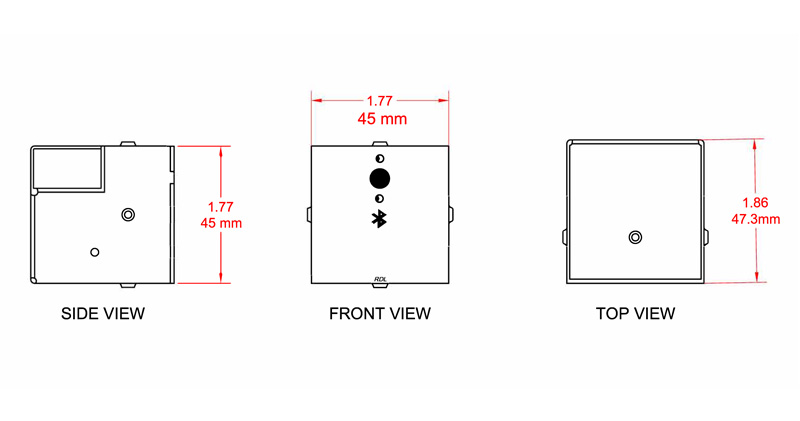

Dimensions
