Description

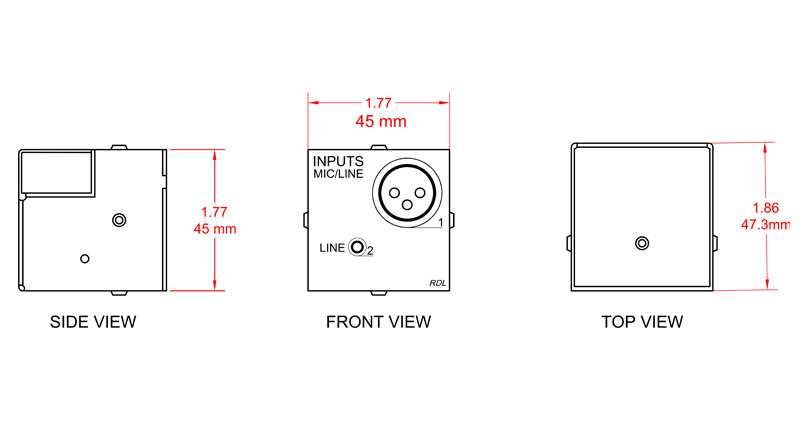

The EU-RN2ML is a complete wall-mounted Dante or AES67 audio network interface. It features one XLR mic or line input on the front panel and one stereo Mini-jack line-level input summed to mono. The module is configured and adjusted using RDL CONSOLE or other network control software. The EU-RN2ML fits a standard 60 mm deep European electrical box. The EU-RN2ML is PoE powered and is supplied with a white front panel and cover plate. A field-installable black front panel laminate is included with the EU-RN2ML.
The XLR input is converted to a Dante network transmit channel. Five gain settings are software-selectable for the XLR input. Three gain settings are provided to match condenser or dynamic microphones. Two gain settings are provided to match standard line levels. P48 phantom voltage may be software enabled when the XLR input is set for mic level.
The Mini-jack input is converted to one Dante network transmit channel. The left and right Mini-jack inputs are actively summed. Three software controlled gain settings are provided to increase or decrease the gain by 5 dB from the normal gain setting, optimized for an input level of -10 dBV.
Valid PoE power and synchronization to the Dante network are indicated by a green LED visible from the front of the unit.
The EU-RN2ML is a professional grade product with an RDL mic preamplifier for studio quality fidelity and low noise performance, with audio coupled through XLR and Mini-jacks housed in a steel chassis finished with a reverse-printed laminate. Exceptional performance is made possible by RDL preamps in lieu of the consumer grade preamplifiers bundled with typical A to D converters.
The EU-RN2ML’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in America with quality U.S. and imported components for continuous duty in demanding installations. Designed to outperform. Built to last.
Field-replaceable Black Laminate included. Black cover plate not included.
