RDL®

EZ-HDA6

Stereo Headphone Distribution Amp - 1X6 Rear-Panel Outputs

SKU: EZ-HDA6
  • One Stereo Input to Six Stereo Outputs
  • Unbalanced Inputs on Rear Panel
  • Input on MINI, 1/4″ (6.3 mm) or RCA Jacks
  • LOOP OUT Jack for 1/4″ (6.3 mm) Input
  • 1/4″ (6.3 mm) Headphone Outputs on Rear Panel
  • Front-Panel LEVEL Control for Each Output
  • Gold-Plated RCA Input Connectors
  • Each Output is Driven Separately
  • Knobs for Easy Level Adjustment
  • Recommended Power Supply ( Included )
    PS-24AS (USA)PS-24AX (International)

    Description

    The EZ-HDA6 contains six stereo headphone amplifiers with individual front-panel volume controls. Headphone outputs are provided on rear-panel 1/4" jacks. One input signal feeds all the amplifiers. Stereo RCA jacks, a mini-jack and a dual 1/4" jack (for "loop out" connection) are provided for connecting the input source. The EZ-HDA6 is used in music stores, houses of worship, studios, museums, home component systems and commercial sound systems.

    Specifications

    Inputs (3):Stereo on dual RCA jacks, stereo mini jack or 1/4” (6.3 mm) TRS, > 10 kΩ, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4”), -16 dBV nominal, +2 dBV max. (Mini)
    Stereo input LOOP OUT:1/4” (6.3 mm) TRS
    Frequency Response:20 Hz to 50 kHz (±1.5 dB, 100 Ω load)
    Level control:Off to +2.5 dB gain (RCA and 1/4” inputs, 100 Ω output load), Off to +9 dB gain (Mini input, 100 Ω output load)
    Outputs (7):Stereo on 1/4” (6.3 mm) TRS (6, rear panel), 60 mW (100 Ω load)
    THD+N:< 0.1% (10 mW output, 100 Ω load)
    Crosstalk:< -75 dB (1 kHz)
    Noise:< -95 dB (below 10 mW output, 100 Ω load, maximum gain
    24 Vdc power supply current:50 mA (idle), 80 mA (max.)
    Case dimensions:5.75” (14.6 cm)W x 3” (7.6 cm)D
    Mounting size:1/3 rack width
    Package Type:Cardboard Box
    Tariff code:8543.70.9860
    WEEE weight:0.65 lbs.
    Shipping Weight:1.06 lbs.
    Package Dimensions:9.5 x 7 x 2.25 in.

    Related Products

    Headphone Amplifiers
    • EZ-HDA4A

      Stereo Headphone Distribution Amp - 1X4 Front-Panel Outputs

    • EZ-HDA4B

      Stereo Headphone Distribution Amp - 1X4 Rear-Panel Outputs

    Related Products

    EZ Mounting Accessories
    • EZ-CC6

      Component Chassis for 6 Increments of 1/6 Rack Width

    • EZ-DC2

      Desktop Chassis for 1/3 Rack Width EZ Products

    • EZ-FP1

      Filler Panel - 1/6 Rack Width for EZ-RA6 or EZ-CC6

    • EZ-RA6

      Rack Adapter for 6 Increments of 1/6 Rack Width

    • EZ-SD1

      Storage Drawer - 1/6 Rack Width for EZ-RA6 or EZ-CC6

    • EZ-SD2

      Storage Drawer - 1/3 Rack Width for EZ-RA6 or EZ-CC6

    • EZ-SMB2

      Surface Mount Bezel for 1/3 Rack Width EZ Products

    • EZ-UCB2

      Under Counter Bracket Pair for all EZ Product Widths

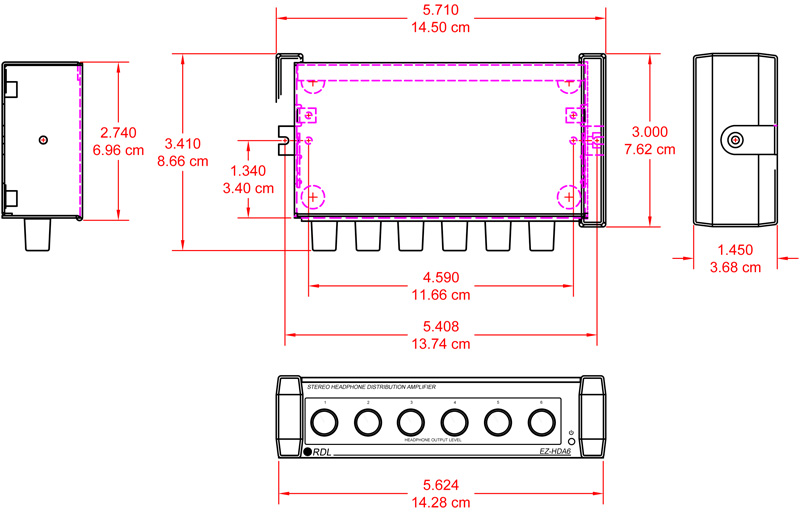

      Dimensions

      EZ-HDA6
