RU-BTLA

Bluetooth® Line-Level Audio & Format-A Interface

SKU: RU-BTLA

Bluetooth 5.3 Audio Input for Installed Sound Systems
Bluetooth LE (CIS) and Bluetooth Classic (A2DP) Audio Supported
Supported Codecs: LC3 (BLE), AAC & SBC (A2DP)
Intuitive Front-Panel Single Button Pairing with LED Status Indication
Extended Range Under Ideal Conditions, Up To 100 Meters from a Class 1 Device
(Pairing and Connection Range is Limited by Connected Device’s Range)
Rack-Mounted, Free-Standing or Surface-Mounted Operation
Module Setup Using a Terminal Program or a Bluetooth-Equipped Computer
Customizable Module ID Name and Programming Password via Bluetooth Connection
Supports One or Two RDL Pairing/Status Remote Controls
(D-RBTP or EU-RBTP), Available Separately
Remote Pairing Connections Compatible with Third-Party Dry Contacts
Stereo Line-Level Balanced +4 dBu XLR and -10 dBV Unbalanced RCA Outputs
Front-Panel Switch-Selectable Stereo or Mono Line-Level Outputs
Front-Panel Flush Slotted Attenuator for XLR and RCA Line-Level Outputs
Front-Panel Switch-Selectable Stereo or Mono Format-A Outputs
Format-A Mono Outputs Switch-Selectable to Feed Pair A, B or C
Format-A Stereo Outputs Feed Pairs B (Left Channel) and C (Right Channel)
In Mono Mode, Daisy-Chain up to Three RU-BTLA Modules to One Format-A Receiver
Any or All Audio Outputs May Be Used Concurrently
Locally Powered by 24 Vdc or Remotely Powered Over Twisted Pair Cable from Format-A Receiver
Format-A Signal and Power Pair Pass-Through on RJ45 Jacks

Datasheet

Recommended Power Supply ( Not Included )
PS-24AS (USA)	PS-24AX (International)

Categories: Bluetooth®, Format-A®, Format-A® Senders Tag: What's New

Connected

The RU-BTLA delivers a complete set of audio outputs, including balanced XLR, unbalanced RCA and Format-A twisted pair RJ45 jacks. The line outputs and the Format-A outputs may be independently configured to provide either mono or stereo outputs.

Future Proof

The RU-BTLA supports both Bluetooth Classic as well as Bluetooth LE Audio, allowing it to deliver high quality audio and extended range (up to 100 meters from a Class 1 device), as well as ensuring support for the widest range of current and future user devices.

Customizable

The RU-BTLA was designed to support the unique requirements of commercial installations, including the ability to enable/disable PIN pairing, define the pairing PIN and customize the broadcast name of each RU-BTLA.

PIN pairing support has been verified on Apple, Samsung and Windows 10 devices. Support for this feature on other devices is dependent upon implementation by the respective device manufacturers and cannot be guaranteed by RDL.

Flexible installation options

Out of the box the RU-BTLA supports a variety of installation options. Simply place it on a surface on its nonslip rubber feet, secure it using the integrated mounting plate, or select from a wide range of optional RDL trays and brackets for rack installations.

The integrated antenna delivers industry-leading extended range and will support most installation scenarios. In a situation where the AV rack is completely blocked off and inaccessible, the RU-BTLA has mounting holes that allow it to be mounted anywhere on a wall or ceiling, with a balanced audio or Format-A line run back to the rack. A Decora style remote pairing button is available to allow users to initiate pairing on the RU-BTLA from any location.

For flexible user access, wall-mounted pairing controls are available in Decora or EU-style form factors to allow users to initiate remote pairing with the RU-BTLA.

Reliable

The RU-BTLA is manufactured at our headquarters in Prescott, Arizona using high quality components and materials. In addition, its integrated antenna removes the risk of an external antenna being damaged or misplaced. And like all RDL products, every single unit is thoroughly inspected and tested before it is packaged and shipped to the customer.

Description

The RU-BTLA is a Bluetooth audio receiving module with three sets of audio outputs: Balanced line-level XLR jacks, unbalanced line-level RCA phono jacks, and RDL® Format-A twisted pair RJ45s. Format-A outputs are at a fixed level and may be configured mono or stereo on a recessed front-panel slide switch. The line-level outputs are all controlled by a single adjustable LEVEL attenuator on the front panel, configured mono or stereo on a recessed front-panel slide switch. All outputs may be used simultaneously.

Pairing is initiated by a front-panel pushbutton. Pairing status is displayed on associated LEDs. A rear-panel terminal block allows the RU-BTLA pairing functions and status to be remote controlled by one or two separately available RDL remote controls. Pairing may be remotely initiated by dry contact closure.

The RU-BTLA can be sequentially paired with an unlimited number of Bluetooth devices. The most recently paired seven devices are retained in memory for re-pairing. Upon pairing to a new device, the oldest stored device is automatically deleted.

When paired with a compatible Bluetooth-enabled device, the module receives stereo audio from the Bluetooth source. The stereo Bluetooth audio feeds the line outputs. The stereo signal is also sent through two Format-A pairs to any RDL Format-A receiver (available separately). A stereo/mono switch set by the installer permits summed mono audio to be sent over one switch-selected pair to the Format-A receiver. All audio outputs are muted when the RU-BTLA is not paired.

With stereo operation selected, an additional Format-A source (set to Pair A) may be daisy chained with the RU-BTLA to a three-pair Format-A receiver. With mono operation selected, up to three RU-BTLA modules may be daisy chained to a single three-pair Format-A receiver. Connections between Format-A modules use standard CATx cable with RJ45 connectors.

The RU-BTLA modules may be powered from a Format-A receiver or from an external 24 Vdc power supply (available separately). When external power is applied to the RU-BTLA, power is sent out the Format-A jacks to other connected devices. The installer can customize the module name and programming password through the Bluetooth connection using a smartphone, computer or tablet terminal program. These modules feature studio-quality circuits and analog filters to provide audio performance exceeding expectations from consumer interface technologies.

High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.

Specifications

TYPICAL PERFORMANCE
Bluetooth® to Line Output Interface Section
Outputs (4):	Balanced: XLR (2); Unbalanced: RCA (2)
Output level (attenuator fully CW):	XLR (2): +4 dBu balanced, nominal; RCA (2): -10 dBV unbalanced, nominal
Output attenuation:	Off to nominal (+4 dBu or -10 dBV) for -20 dBFS source
Output attenuator:	Front panel flush slotted single-turn trimmer
Mode:	Stereo or Mono (balanced and unbalanced outputs)
Mode selector (line outputs):	Recessed slide switch (front panel)
Frequency Response:	20 Hz to 18 kHz (± 1 dB)
THD+N:	< 0.05%
Crosstalk (channel to channel):	< -82 dB (stereo balanced and unbalance outputs)
Noise below -20 dBFS:	< -70 dB (20 Hz to 20 kHz); < -85 dB (20 Hz to 20 kHz, muted)

Bluetooth® to Format-A Output Interface Section
Output:	RJ45
Format-A Input:	RJ45 (Pass-thru)
Format-A Signal Pair(s) Used:	A, B, or C (summed mono mode, front-panel switch-selectable); B and C (stereo mode, pair A pass-through)
Format-A Pair Selector:	Recessed slide switch (front panel)
Output Level:	XLR (2): +4 dBu balanced, nominal; RCA (2):-10 dBV unbalanced, nominal
Mode:	Stereo or Mono
Mode selector (Format-A):	Recessed slide switch (front panel)
Frequency Response:	20 Hz to 18 kHz (± 1 dB)
THD+N:	< 0.05%
Crosstalk (channel to channel):	< -75 dB (1 kHz)
Noise below -20 dBFS:	< -70 dB (20 Hz to 20 kHz); < -85 dB (20 Hz to 20 kHz, muted)

Common
Audio Operating Levels:	-20 dBFS = +4 dBu (balanced) and -10 dBV (unbalanced), nominal
Indicators (3):	Power, Pair and Fault
Power Requirement:	24 Vdc @ 250 mA
Ambient Operating Environment:	0° C to 40° C
Dimensions:	5.74 in. (14.58 cm) W; 1.64 in. (4.17 cm) H; 3.96 in. (10.06 cm) D
Package Type:	Cardboard Box
Package Dimensions:	6.7 x 6.25 x 2.75 in.
Shipping Weight:	1.39 lb
WEEE Weight:	1.12 lb
US Tariff Code:	8543.70.9100
EU Tariff Code:	85437006

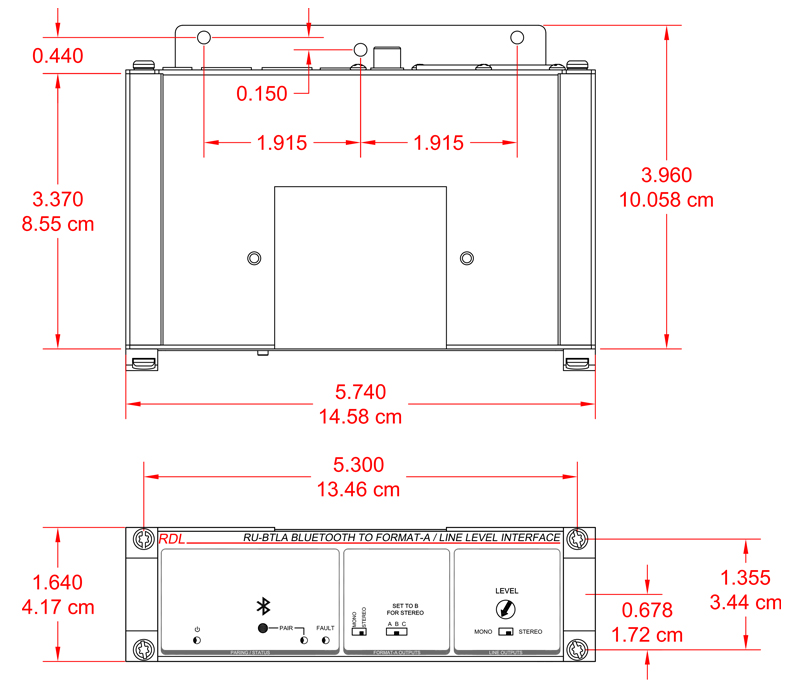

Dimensions

Downloads

Documents	Format
Programming	PDF
Datasheet	PDF

CAD Files	Units	Format
Engineering Functional Block	American	DXF
Panel Diagram - Front	American	DXF
Panel Diagram - Rear	American	DXF
Panel Diagram - Front	Metric	DXF
Panel Diagram - Rear	Metric	DXF

High-Res Images	Format
RU-BTLA	TIF

Declaration of Conformity
Download
