RU-RN44

Mic/Line Wired Bi-Directional Network Interface 4x4

SKU: RU-RN44

Default Configuration Converts Four Mic or Line Inputs to Dante/AES67
Default Also Converts Four Dante/AES67 Channels to Mic or Line Outputs
8 X 8 Mixing Matrix Signal Paths and DSP Filters Expand System Design Flexibility
Ultra-Low Latency: 2 ms Analog to Digital to Analog
Analog Inputs and Outputs on Detachable Terminal Block
Terminal Block Connections may be Wired Balanced or Unbalanced
Analog Input Gains Adjustable From 0 dB to 60 dB in 3.3 dB steps
P48 Phantom Individually Selectable per Input or Automatically Gain-Dependent
Selectable Audio Compressor/Limiter on Each Analog Input
One DSP Filter for Each Analog and Dante/AES67 Input
Three DSP Filters for Each Analog and Dante/AES67 Output
Selectable DSP Filters: None, Hi-Pass, Lo-Pass, Shelf Hi/Lo, Notch Boost/Cut
All DSP Filters are Fully Programmable
Each Output Stage Receives Audio through a Eight-Channel Mixer
Each Output Mixer Source is Adjustable From Unity (Fully On) to OFF
Analog Outputs are Protected from External Phantom Voltages up to P48
Each Analog Output Equipped with a Selectable 180° Polarity “Phase” Inverter
Each Analog Output Equipped with a Selectable Line to Mic Attenuator Pad
Analog Outputs Adjust in 1 dB Steps Below +4 dBu Line or -46 dBu Mic Level
Dante/AES67 and Analog Outputs Adjustable in 1 dB Steps 0 to -63 dB then OFF
Remote Controllable Using Compatible RDL Remote Controls
Multicolor LED Indication of Audio Levels, Sync and Signal Presence
Extremely Low Noise <-69 dB Below Operating Level at 60 dB (Max) Input Gain
Operates at 48 kHz with High Resolution 24 Bit A/D and D/A Conversion
All Operating Parameters and Settings Programmed using RDL CONSOLE

Recommended Power Supply
PS-24AS (USA)	PS-24AX (International)

Category: Dante® Tags: New Rack-Up® Dante® Interfaces, What's New

Flexible I/O
and Mixing Capabilities

The RU-RN44 features an internal mixer making it even more versatile than a standard Dante/AES67 format converter. Each output stage can be fed from any input channel, whether network-based or analog, with independent control of all mixer levels.

Superior Audio Performance

The RU-RN44 delivers studio quality audio, as demonstrated by its ultra-low noise floor, 2 ms latency and < 0.05% THD. Audio performance can be further tailored through customizable low pass, high pass, shelving and peaking filters.

Comprehensive Control

The RU-RN44 can be configured, monitored and even updated over the network using RDL Console 3 software.

For hardware-based control, the RU-RN44 is compatible with
D-NMC1R and D-NLC1R network-based remotes, providing simple end user control over volume, presets and other parameters.

Flexible Mounting Options

Like all RDL Rack Up products, the RU-RN44 is supported by a full set of mounting options, from surface mount brackets to universal 19” rack chassis to DIN rail adaptors.

Unmatched Durability

RDL is renowned for the quality and durability of its products, and the RU-RN44 lives up to that reputation with its steel chassis, top grade components and seven year warranty.

Description

The RU-RN44 modules are Dante/AES67 audio network interface products compatible with microphones and line-level audio equipment inputs and outputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

The RU-RN44 has four analog mic/line inputs, four Dante/AES67 network digital audio channel inputs, four Dante/AES67 network audio channel outputs and four analog mic/line outputs. Each output stage is driven by an incorporated mixer fed from all eight RU-RN44 inputs. Independent control of all mixer levels plus multiple DSP filters with adjustable parameters make the RU-RN44 far more versatile than a basic format converter. Each DSP filter may be set to None (audio pass-through), High-Pass, Low-Pass, Shelf High or Low or Notch Boost/Cut. Multiple filters may be set to the same function to obtain higher order filtering.

The RU-RN44 factory default settings provide high-quality converters that feed professional line-level outputs from four Dante/AES67 network received audio channels. Those settings also convert four analog line-level, dynamic or condenser microphone sources to Dante/AES67 network audio channels. The RU-RN44 provides a detachable terminal block for connection to each analog input or output. Normal operating line level is +4 dBu balanced for -18 dBFS. The balanced terminal blocks may be wired unbalanced.

Consult the RU-RN44 functional block diagram in the image gallery to explore the wide range of configurations made possible by the mixing matrix design.

Specifications

TYPICAL PERFORMANCE
Network Connector:	RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:	Dante or AES67
Transmission Rate:	100 Mbps
Sample Rates Supported:	44.1 kHz, 48 kHz (default)
Bit Depth Supported:	24 bits
Audio Operating Level:	-18 dBFS = +4 dBu
Reference Level:	0 dBFS = +22 dBu

Mic/Line Inputs to Network Section:
Inputs (4):	Balanced, Detachable Terminal Block (may be wired unbalanced)
Gain:	Software adjustable, 0 dB to 60 dB, 3.33 dB steps
Input Level (for +4 dBu/-18 dBFS):	-56 dBu minimum, +4 dBu, maximum
Input Level (maximum):	+22 dBu
Input Impedance:	> 1.2 kΩ
Phantom Power:	P48, software-selectable; programmable for automatic enable when MIC gain is selected
Standard for Phantom:	IEC 61938:2013
Frequency Response:	20 Hz to 20 kHz (+0, -0.75 dB)
Equivalent Input Noise (EIN):	< -129 dBu (60 dB gain); < -131 dBu A-Weighted
Noise below -18 dBFS (20 to 20 kHz):	Mic: < -69 dB (60 dB gain), < -79 dB (50 dB gain); Line: < -100 dB
THD+N:	< 0.05% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
CMRR:	Below Noise Floor (50 Hz to 150 Hz)
Crosstalk:	< -70 dB (20 Hz to 20 kHz, any channel to any channel, 0 dB gain to 60 dB gain

Network to Line Outputs Section:
Outputs (4):	Balanced, Detachable Terminal Block (may be wired unbalanced)
Output Attenuation Pads (4):	Software-selectable, Line Output (no attenuation), Mic Output (50 dB attenuation)
Output Level (operating):	Line: +4 dBu (nominal) balanced; Mic: -46 dBu (nominal) balanced
Output Level (maximum):	Line: +22 dBu balanced; Mic: -28 dBu balanced
Output Attenuators (4):	Software-controlled, 0 to -63 dB and OFF, 1 dB steps (per analog output)
Output Impedance:	150 Ω balanced
Frequency Response:	20 Hz to 20 kHz (+0, -0.75 dB)
THD+N:	< 0.01% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
Noise below -18 dBFS (20 to 20 kHz):	< -85 dB (20 Hz to 20 kHz, +4 dBu/-18 dBFS); < -103 dB (below +22 dBu)
Crosstalk:	Below Noise Floor (1 kHz at operating level, output to output); < -74 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:	> 18 dB

Indicators (11):	Ethernet Link and Speed (2, rear panel); Signal per audio channel and Power (9, front panel)
Ambient Operating Environment:	0° C to 40° C
Power Requirement:	PoE Class 0, IEEE 802.3af, or 24 Vdc @ 275 mA (6.6W)
Specification Conditions:	Gain/Level ± 1 dB; Source termination 150 Ω; A to D values measured in digital domain
Dimensions:	5.74” (14.58 cm) W; 1.64” (4.17 cm) H; 6.4” (16.26 cm) D
Package Type:	Cardboard Box
Package Dimensions:	3.25” (8.26 cm) H X 7.8” (19.8 cm) W X 7.25” (18.4 cm) D
Shipping Weight:	2.28 lbs. (1.03 kg)
WEEE weight:	1.92 lbs. (0.87 kg)
US Tariff Code:	8543.70.9100
EU Tariff Code:	85437006

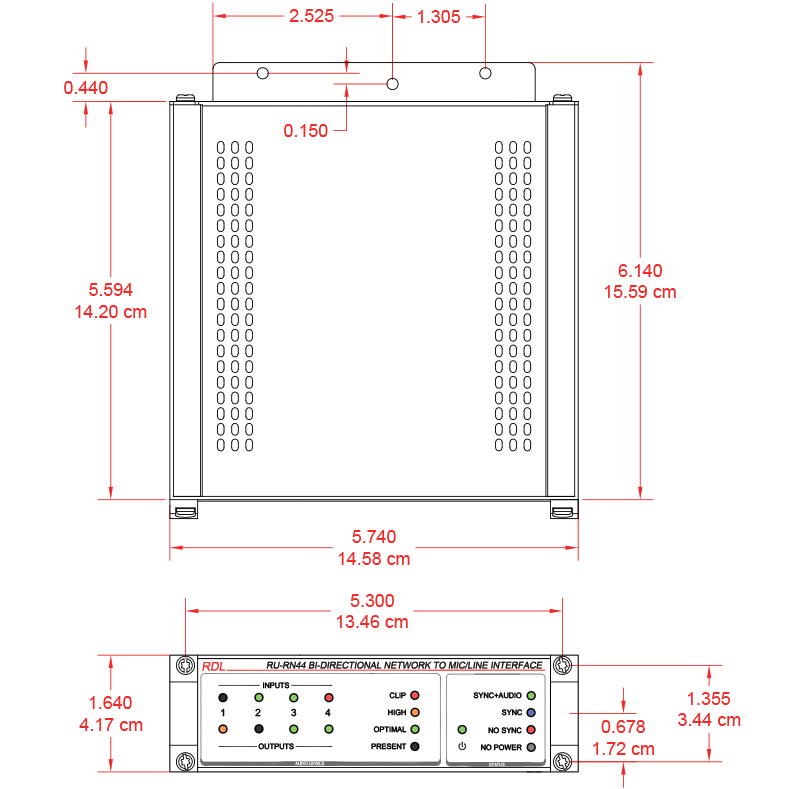

Dimensions
