RDL®

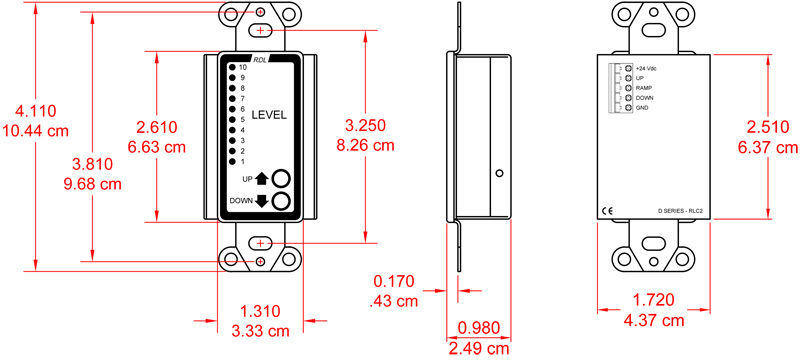

D-RLC2

Remote Level Control - Ramp

SKU: D-RLC2
  • Remote Level Control Panel
  • Pushbutton UP and DOWN
  • 10-segment Visual Level Display
  • Multiple Control / Indication Locations
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance
  • How to Customize
    Recommended Power Supply
    PS-24AS (USA)PS-24AX (International)
    Category:

    Description

    The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.

    The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The D-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the D-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.

    Specifications

    Ramp Input:0 to 10 Vdc
    Outputs:UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA
    Mounting:Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
    Ambient Operating Environment:0° C to 55° C
    Connections:Detachable terminal block;
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 75 mA
    Package Type:Cardboard Box
    Tariff code:8543.70.9860
    WEEE weight:0.215 lbs.
    Package Dimensions:3.625 x 4.625 x 2.125 in.
    Shipping Weight:0.365 lbs.
