D-TPS7A

Passive Single-Pair Sender

SKU: D-TPS7A
  • Stereo Audio Input Combined to Mono Output
  • Input on Mini-jack
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
  • Passive Circuitry Does Not Require Power
  • Galvanic Isolation through a Studio-Quality Transformer
  • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
  • How to Customize

    Description

    The -TPS7A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel features a single stereo mini-jack intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE.

    The -TPS7A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS7A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.

    The -TPS7A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.

    Specifications

    Input:3.5mm mini-jack, unbalanced stereo combined to mono
    Input Level:-10 dBV, +22 dBu max
    Format-A Signal Pair Used:Switch-selectable A, B, or C (rear-panel switch)
    Format-A Input:RJ45 TP CABLE
    Ouput:RJ45 TP CABLE, RDL TP Format-A
    Frequency Response:20 Hz to 20 kHz (±0.5 dB)
    THD:< 0.1% (50 Hz to 20 kHz); <0.001% (1 kHz typ)
    Power Requirement:Passive
    Dimensions:1.6” (4.06 cm) W; 4.11” (10.45 cm) H; 1.89” (4.8 cm) D
    Package Type:Cardboard Box
    Package Dimensions:3.625 x 4.625 x 2.125 in.
    Shipping Weight:0.51 lbs.
    WEEE weight:0.365 lbs.
    Tariff code:8543.70.9860

    Related Products

    Format-A® Senders
    • D-TPS6A

      Passive Single-Pair Sender

      Customizable Text

    • DS-TPS6A

      Passive Single-Pair Sender

      Customizable Text

    • DS-TPS7A

      Passive Single-Pair Sender

      Customizable Text

    Mixing
    • FP-MX3R

      Remote Controlled Line-Level Mixer

    • FP-TPX3A

      Format-A Twisted Pair Remote Controlled Mixer

    Format-A® Mixers
    • FP-TPX3A

      Format-A Twisted Pair Remote Controlled Mixer

    Related Products

    General Mounting Accessories
    • CP-4S

      Quadruple Cover Plate - stainless steel

    • CP-4

      Quadruple Cover Plate - white

    • CP-4G

      Quadruple Cover Plate - gray

    • CP-3S

      Triple Cover Plate - stainless steel

    • CP-3G

      Triple Cover Plate - gray

    • CP-2S

      Double Cover Plate - stainless steel

    • CP-3

      Triple Cover Plate - white

    • CP-1S

      Single Cover Plate - stainless steel

    • DC-4W

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • DC-4G

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • DC-3G

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • DC-2G

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • DC-3W

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • DC-1W

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • DC-2W

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • DC-1G

      Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

    • SMB-4G

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • SMB-3G

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • SMB-2G

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • SMB-4W

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • SMB-3W

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • SMB-2W

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • SMB-1G

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • SMB-1W

      Surface Mount Boxes for Decora® Remote Controls and Panels

    • RM-D9

      19" Rack Mount for 9 Decora® Modules

    • RM-D3

      19" Rack Mount for 3 Decora® Modules

    • CP-2G

      Double Cover Plate - gray

    • CP-1G

      Single Cover Plate - gray

    • WB-2U

      Universal Wall Box - Double - Mounts RDL remote controls & wall plates

    • CP-2

      Double Cover Plate - white

    • WB-1U

      Universal Wall Box - Single - Mounts RDL remote controls & wall plates

    • CP-1

      Single Cover Plate - white

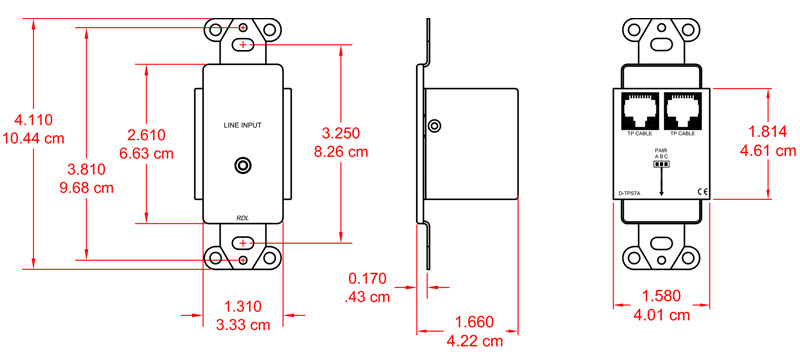

    Dimensions
