DS-SFRC8

Room Control Station for SourceFlex Distributed Audio System

SKU: DS-SFRC8
  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Volume Adjustment Using a Single-Turn Control
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Line Output Switchable Fixed or Variable
  • Variable Output Follows Front-Panel Level Control
  • 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • Speaker Output Connection on Detachable Terminal Block
  • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
  • Compatible with Other RDL Wall Plates and Controls
  • Ideal for Office Distributed Sound Systems with Music and Paging
Datasheet Customize
How to Customize
TAA Compliant
Category:

Description

The D SERIES-SFRC8 Room Control Station is a SourceFlex listening station for wall mounting in a room, providing source selection and volume control from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The amplified power output can deliver up to 3.5 Watts RMS into an 8 ohm Speaker.

A rear-panel switch set during installation causes the balanced line-level output to produce either a fixed +4 dBu or a variable level adjusted by the front-panel control. The unbalanced output is 12 dB below the balanced output level.

Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation.

The D SERIES-SFRC8 is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8 is ideal for office distributed sound systems with background music and a paging source. Installation is simple, requiring only wiring and an external 8 ohm Speaker for most installations.

Specifications

Input:10-position detachable terminal block
Display:7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
Selector:Momentary button channel SELECT
Gain Adjustment:Single-turn audio taper (Front-panel)
Frequency Response:20 Hz to 20 kHz (Line level, ±0.1 dB); 40 Hz to 20 kHz (Speaker, ±1 dB)
THD+N:< 0.1% (Line level, 20 Hz to 20 kHz); < 0.25% (Speaker, 1 kHz)
Noise:< -85 dB (Line level, below +4 dBu); < -80 dB (Speaker, below 1 W RMS)
Control Signals:dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
Line Outputs (2):+4 dBu balanced, -10 dBV unbalanced, nominal
Output Power:3.5 W RMS (Max., into 8 ohms); 6.5 W RMS (Max., into 4 ohms)
Power Requirement:24 Vdc @ 30 mA (Idle); 55 mA (1/8 power; normal voice or music); 225 mA (3.5 W into 8 ohms), Supplied from SourceFlex controller
Ambient Operating Environment:0° C to 40° C Maximum; 20° C Recommended
Dimensions:Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
Package Type:Cardboard Box
Package Dimensions:3.625 x 4.625 x 2.125 in.
Shipping Weight:.44 lbs
WEEE weight:0.305 lbs.
Tariff code:8518.40.2000

Related Products

SOURCEFLEX
  • D-SFRC8

    D-SFRC8

    Room Control Station for SourceFlex Distributed Audio System

    Customizable Text

  • D-SFRC8L

    D-SFRC8L

    Audio Selector for SourceFlex Distributed Audio System

    Customizable Text

  • DB-SFRC8

    DB-SFRC8

    Room Control Station for SourceFlex Distributed Audio System

    Customizable Text

  • DB-SFRC8L

    DB-SFRC8L

    Audio Selector for SourceFlex Distributed Audio System

    Customizable Text

  • DS-SFRC8L

    DS-SFRC8L

    Audio Selector for SourceFlex Distributed Audio System

    Customizable Text

Speakers and Active Speakers
  • D-SP1A

    D-SP1A

    2 Watt Decora-Style 8 Ohm Loudspeaker

  • DB-SP1A

    DB-SP1A

    2 Watt Decora-Style 8 Ohm Loudspeaker

  • DG-SP1A

    DG-SP1A

    2 Watt Decora-Style 8 Ohm Loudspeaker

  • DS-SP1A

    DS-SP1A

    2 Watt Decora-Style 8 Ohm Loudspeaker

Headphone Amplifiers
  • SAS-HC8

    SAS-HC8

    Headphone Amplifier with Source Selection for SourceFlex Distributed Audio System

Related Products

General Mounting Accessories
  • CP-1

    CP-1

    Single Cover Plate - White

  • CP-1G

    CP-1G

    Single Cover Plate - Gray

  • CP-1S

    CP-1S

    Single Cover Plate - Stainless Steel

  • CP-2

    CP-2

    Double Cover Plate - White

  • CP-2G

    CP-2G

    Double Cover Plate - Gray

  • CP-2S

    CP-2S

    Double Cover Plate - Stainless Steel

  • CP-3

    CP-3

    Triple Cover Plate - White

  • CP-3G

    CP-3G

    Triple Cover Plate - Gray

  • CP-3S

    CP-3S

    Triple Cover Plate - Stainless Steel

  • CP-4

    CP-4

    Quadruple Cover Plate - White

  • CP-4G

    CP-4G

    Quadruple Cover Plate - Gray

  • CP-4S

    CP-4S

    Quadruple Cover Plate - Stainless Steel

  • DC-1G

    DC-1G

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • DC-1W

    DC-1W

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • DC-2G

    DC-2G

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • DC-2W

    DC-2W

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • DC-3G

    DC-3G

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • DC-3W

    DC-3W

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • DC-4G

    DC-4G

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • DC-4W

    DC-4W

    Desktop or Wall Mounted Chassis for Decora® Remote Controls and Panels

  • RM-D3

    RM-D3

    19" Rack Mount for 3 Decora® Modules

  • RM-D9

    RM-D9

    19" Rack Mount for 9 Decora® Modules

  • SMB-1G

    SMB-1G

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • SMB-1W

    SMB-1W

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • SMB-2G

    SMB-2G

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • SMB-2W

    SMB-2W

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • SMB-3G

    SMB-3G

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • SMB-3W

    SMB-3W

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • SMB-4G

    SMB-4G

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • SMB-4W

    SMB-4W

    Surface Mount Boxes for Decora® Remote Controls and Panels

  • WB-1U

    WB-1U

    Universal Wall Box - Single - Mounts RDL remote controls & wall plates

  • WB-2U

    WB-2U

    Universal Wall Box - Double - Mounts RDL remote controls & wall plates

Dimensions

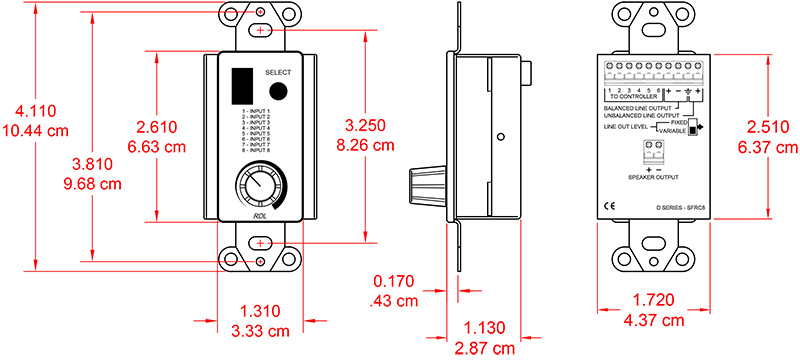

DS-SFRC8
