RDL®

RU-AVX4

Audio/Video Switcher - 4x1 - RCA

SKU: RU-AVX4
  • Video and Stereo Audio Switching
  • Four Video and Four Stereo Audio Inputs
  • Consumer Format Input and Output Jacks
  • 10 MHz Video Bandwidth – NTSC or PAL
  • Long-Life Keyboard Style Pushbuttons
  • Rear-Panel Remote Control Connections
  • Professional Quality Performance
  • Recommended Power Supply ( Not Included )
    PS-24AS (USA)PS-24AX (International)

    Description

    The RU-AVX4 is the ideal choice in installations where a single set of audio/video signals needs to be selected from up to 4 consumer format (phono jack) video and audio sources. Video signal quality, audio performance and pushbutton durability are equal to that found in professional switchers. Audio and video source selection uses all solid-state switching. High quality audio and video line driver amplifiers feed the module's output.

    The RU-AVX4 has four separate inputs and a single output on the rear panel. The inputs and output provide one video phono jack and two associated (left and right) audio phono jacks. When power is first applied to the module, input 1 (default) is automatically selected. Four keyboard style long-life pushbuttons on the front panel are used to select one of the inputs at a time. When a button is pushed, the corresponding video and audio input is fed to the output of the RU-AVX4 and any previously selected source is shut off. Only one source may be selected at a time.

    The RU-AVX4 rear-panel terminal block provides four connections to remotely control the module. A momentary external closure to ground on an input terminal will select the associated input. Continuous remote closures will select inputs while disabling source selection by the front-panel buttons. An LED indicator above each front-panel button shows which input is selected.

    Specifications

    VIDEO
    Inputs (4):

    75 Ω, phono jack with gold contacts
    Input level1 V p-p
    Output:75 Ω, phono jack with gold con
    Frequency Response:10 Hz to 10 MHz (± 0.35 dB)
    Residual Noise: 78 dB
    Differential gain:0.1%
    Differential phase:< 0.3 degree

    >AUDIO
    Inputs (4):10 kΩ, unbal stereo (left and right) phono jack
    Gain:Unity nominal (+0, -1 dB)
    Input level:-10 dBV nominal
    Output:75 Ω, unbal stereo (left and right) phono jacks
    Frequency Response:10 Hz to 60 kHz (± 0.05 dB)
    Total Harmonic Distortion: 20 dB (at rated in/out level of -10 dBV)
    Noise:-95 dB, -10 dBV ref. (20 Hz to 20 kHz)
    OFF attenuation:> 74 dB (20 Hz to 20 kHz)
    Crosstalk:Below noise floor (inputs terminated)
    Ambient Operating Environment:0° C to 55° C
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 100 mA
    Package Type:Cardboard Box
    Package Dimensions:4.375 x 7 x 2.25 in.
    Shipping Weight:1.19 lbs.
    WEEE weight:0.945 lbs.
    Tariff code:8543.70.9860

    Related Products

    Switching & Control
    • EZ-AVX4

      Composite Video and Stereo Audio Input Switcher - 4X1

    Switching & Control
    • EZ-HSX4

      Stereo Audio Input Switcher with Headphone Amp - 4X1

    • EZ-SX4

      Stereo Audio Input Switcher - 4X1

    Related Products

    Rack-Up® Mounting Accessories
    • UC-2R

      Double Wide RACK-UP Enclosure

    • WDG1R

      Table Top "Wedge" Chassis

    • UC-1R

      RACK-UP Enclosure

    • RU-RA3R

      Rack adapter for RACK-UP series

    • RU-HRA1

      10.4" Rack Mount for 1 RACK-UP Series Product

    • RU-SMA1

      RACK-UP Mounting Plate - Mounts any RACK-UP module in a cabinet or other flat surface

    • RU-BR1

      Mounting Bracket for RACK-UP Series

    General Wiring Accessories
    • RC-1UR

      19" Universal Rack Chassis

    DIN Rail Mounting Accessories

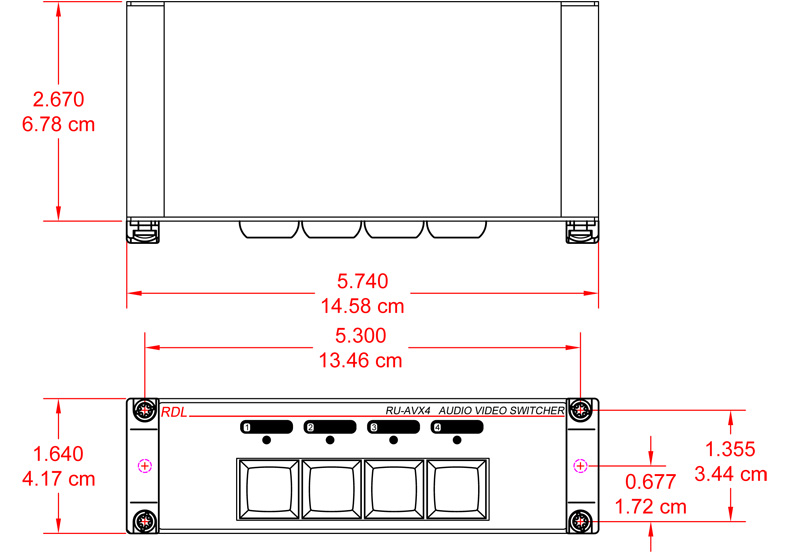

    Dimensions
