RDL®

RU-SC2

RS-232/422 Serial Converter (Full-Duplex)

SKU: RU-SC2
  • Conversion RS-232 ⇔ RS-422
  • Serial Data Over Long Lines
  • Rack-Mountable Convenience
  • Recommended Power Supply ( Not Included )
    PS-24AS (USA)PS-24AX (International)
    Category:

    Description

    The RU-SC2 is the ideal choice in installations when two RS-232 devices requiring full-duplex communication are to be connected at a long distance. Connection to the RS-232 device is made on the front panel. The RS-422 input and output connections and power connections are made on the rear panel through full-size, clearly identified, barrier block terminals. Two RU-SC2s may be connected (using the RS-422 connections) at each end of 2-pair of long, balanced, twisted-pair line to permit feeding data between two RS-232 ports, thereby permitting serial communications over much greater distances than with conventional serial cables.

    Specifications

    Input/Output:1 each RS-232 (front panel-DB9 female) and RS-422 (rear-panel barrier block)
    Baud Rate:Determined by RS-232 device, up to 115.2 kbps
    Indicators:2 LED indicators (Transmit and receive)
    Ambient Operating Environment:0° C to 55° C
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 125 mA
    Package Type:Cardboard Box
    Package Dimensions:4.375 x 7 x 2.25 in.
    Shipping Weight:0.795 lbs.
    WEEE weight:0.55 lbs.
    Tariff code:8543.70.9860

    Related Products

    Serial Control
    • RU2-CS1

      RS-232 Serial Controlled Interface - Computer control

    Related Products

    Rack-Up® Mounting Accessories
    • UC-2R

      Double Wide RACK-UP Enclosure

    • WDG1R

      Table Top "Wedge" Chassis

    • UC-1R

      RACK-UP Enclosure

    • RU-RA3R

      Rack adapter for RACK-UP series

    • RU-HRA1

      10.4" Rack Mount for 1 RACK-UP Series Product

    • RU-SMA1

      RACK-UP Mounting Plate - Mounts any RACK-UP module in a cabinet or other flat surface

    • RU-BR1

      Mounting Bracket for RACK-UP Series

    General Wiring Accessories
    • RC-1UR

      19" Universal Rack Chassis

    DIN Rail Mounting Accessories

    Dimensions

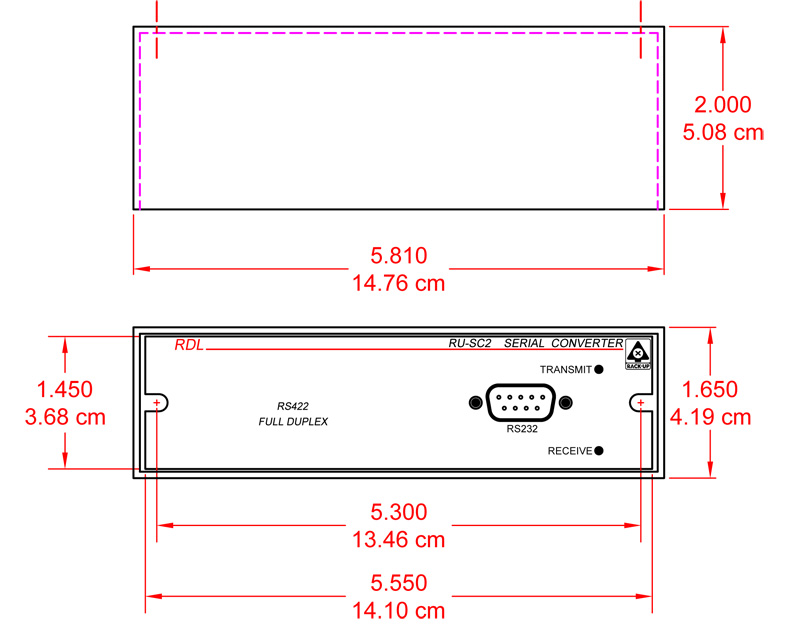

    RU-SC2
