SR-4

STICK-ON Series Mounting Rack - 7 modules

SKU: SR-4
  • Mounts up to 7 RDL STICK-ON® Modules to a Backboard, Wall or Nearly any Other Support
  • Combine RDL STICK-ON® and TX™ Series Modules
  • Includes Provision for Two RDL AMS Series Accessories
  • All-Steel Construction
  • Description

    The SR-4 is a universal module chassis that can mount to a backboard, wall or nearly any other support. It provides mounting for 4 STICK-ON power amplifiers or 7 standard STICK-ON modules. TX™ modules may also be mounted. There is ample space for neat wire harnessing. Hole plugs are included to cover unused wiring holes. Four cable entry ports are provided, two on the bottom and one on each side. Each of these ports is designed either for cabling or mounting any AMS accessory. Two rear mounting holes in the SR-4 align with an RDL WB-2U (or standard double US electrical box) for wall mount installations with rear wire entry.

    Specifications

    Package Type:Cardboard Box
    Shipping Weight:1.75 lbs
    Tariff code:8543.70.9860

    Related Products

    General Mounting Accessories
    • SR-TB10

      Terminal Block Assembly for SR-4

    Related Products

    General Wiring Accessories
    • AMS-TS1

      Illuminated Touch-Activated Pushbutton

    • AMS-XLRMA

      Selectable Mic/Line XLR Output with Phantom Block

    • AMS-RU4

      Mounting panel for 4 AMS Accessories

    • AMS-1/8F

      Stereo Mini-Jack - Terminal block connections

    • AMS-LEDY

      LED Indicator - Yellow

    • AMS-LEDR

      LED Indicator - Red

    • AMS-LEDG

      LED Indicator - Green

    • AMS-LEDB

      LED Indicator - Blue

    • AMS-HR6

      Mounting panel for 6 AMS Accessories

    • AMS-XLM

      XLR 3-Pin Male Jack - fits all AMS mounts

    • AMS-XLF

      XLR 3-Pin Female Jack - fits all AMS mounts

    • AMS-SW2

      Rocker Switch DPDT - fits all AMS mounts

    • AMS-PJ1

      Power Jack Assy for PS-24V, AS, KS - fits all AMS mounts

    • AMS-PB1

      Momentary SPDT Pushbutton - fits all AMS mounts

    • AMS-FP1

      Filler Plate - fits all AMS mounts

    • AMS-BNC

      BNC Jack Assy - fits all AMS mounts

    • AMS-1RC

      Single RCA Jack Assy - Fits all AMS mounts

    • AMS-10KA

      10K Audio Taper Pot & Knob Assembly - Fits all AMS mounts

    • AMS-10K

      10K Linear Taper Pot & Knob Assembly - Fits all AMS mounts

    • AMS-1/4F

      1/4" Headphone Jack - Fits all AMS mounts

    Dimensions

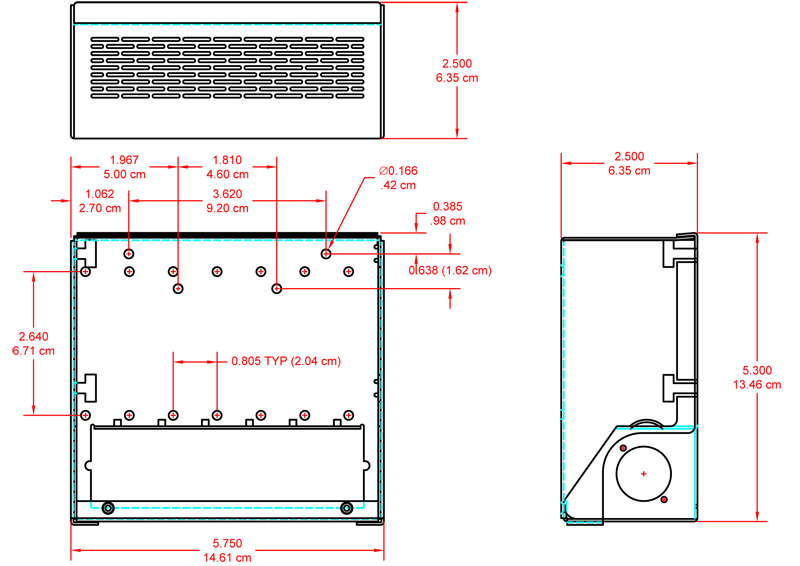

    SR-4
