FP-TPSR4A

Format-A Two-Pair Audio Sender/Receiver

SKU: FP-TPSR4A
  • Combination Sender and Receiver Module
  • Ideal for Hotel Room Audio Systems
  • Distributes Power to All Connected Modules
  • Automatically Resetting Fuse for Output Voltage
  • Ultra-Compact All Metal Construction
  • Format-A Sender from TV Fixed Audio Output
  • Sends Left and Right Audio Channels
  • Unbalanced Stereo Input from Fixed Level Audio Source
  • Balanced Audio Input from Mono Amplifier
  • High Quality Audio Distributed to Each RJ45 Output
  • Two Format-A Outputs on RJ45
  • Format-A Receiver Compatible with 2 Pair Senders such as D-TPS8A
  • Two -10 dBV stereo unbalanced outputs on RCA connectors
  • L (Left) Output From Pair B; R (Right) From Pair C
  • The output feeds the AUX input of the television
  • Description

    The FP-TPSR4A is a sender and receiver that provides the interface between a hotel room television and listening stations and audio input panels.

    The Sender Section is an RDL Format-A audio sender that accepts either a stereo line-level or 1 to 3 Watt mono amplified fixed-level signal, usually from a commercial hospitality equipped TV. The FP-TPS4A distributes the source signal to two Format-A RJ45 output jacks to feed multiple Format-A receivers.

    The input accepts either an unbalanced stereo or an amplified mono input. The FP-TPSR4A sends the unbalanced Left and Right sources over balanced twisted-pair cables on pairs B and C. If a mono amplified signal is connected, the mono source is fed to both pairs B and C. Audio circuitry is active balanced for superior audio fidelity and low-noise performance.

    The Receiver Section is an RDL Format-A receiver with an RJ45 input fed by sender modules such as the D-TPS8A stereo input panel for portable computer or media player. Audio signals received on pairs B and C are amplified to feed two stereo RCA connectors at a standard -10 dBV consumer level. One of these outputs connects to the TV AUX input, the other is available to feed the input of a stereo amplifier in the room.

    The FP-TPSR4A is normally mounted behind a TV where AC power is available. A 24 Vdc power supply, available separately, provides power to the FP-TPSR4A and to the connected sending and receiving modules. It is not necessary to connect power supplies to the connected senders and receivers, facilitating installation. A front-panel blue LED is illuminated when the FP-TPSR4A is receiving and distributing 24 Vdc to all three RJ45 jacks. The distributed output dc voltage is short-circuit protected by an automatically resetting fuse. A power fault on either output jack causes the blue LED to extinguish.

    The FP-TPSR4A is ideally suited to guest room installations with bedside and restroom listening stations. The inputs and outputs are fully compatible with all RDL Format-A receivers.

    RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products.

    Specifications

    Inputs (3):20 kΩ unbalanced (2, left and right); 100 Ω balanced (mono amplified)
    Input Connection:Phono Jack (Unbal.); Mini-jack (Bal.)
    Input Level:-10 dBV unbalanced; 1 W (8 Ohms) to 10 W (8 Ohms) balanced, 2 W nominal
    Format-A Signal Pairs Used (2):B, C
    Output:RDL TP Format-A
    Output Connection:RJ45
    Frequency Response:10 Hz to 50 kHz (± 0.1 dB)
    THD+N:< 0.05%
    Noise below +4 dBu:< -85 dB
    Crosstalk:< -85 dB (10 Hz to 10 kHz); 18 dB

    Receiver Section
    Input::RDL FORMAT-A
    Input Connection:RJ45
    Format-A Signal Pairs Used (2):B (Left); C (Right)
    Output:100 Ω unbalanced
    Output Connections (2):RCA Phono stereo
    Frequency Response:10 Hz to 40 kHz (± 0.1 dB)
    THD+N:< 0.005%
    Noise below +4 dBu:< -90 dB
    Crosstalk:< 90 dB (1 kHz); 20 dB
    CMRR:Power (Input and outputs active)
    Power Connection:Power Jack (locking)
    Maximum Load Current:500 mA
    Power Requirement:24 Vdc @ 35 mA plus connected loads
    Dimensions:6.58" (16.7 cm) L; 3.25" (8.6 cm) W; 1.68" (4.27 cm) H
    Package Type:Cardboard Box
    Package Dimensions:4.375 x 7 x 2.25 in.
    Shipping Weight:1.005 lbs.
    WEEE weight:0.775 lbs.
    Tariff code:8543.70.9860

    Related Products

    Format-A® Receivers
    • D-TPA1A

      3.5 W Audio Power Amplifier

      Customizable Text

    • D-TPR1A

      Active Single-Pair Receiver - Twisted Pair Format-A - XLR microphone/line output

      Customizable Text

    • D-TPR2A

      Active Two-Pair Receiver - Twisted Pair Format-A - stereo RCA jack outputs

      Customizable Text

    • D-TPR3A

      Active Three-Pair Receiver - Twisted Pair Format-A - XLR and stereo RCA outputs

      Customizable Text

    • DB-TPA1A

      3.5 W Audio Power Amplifier

      Customizable Text

    • DS-TPA1A

      3.5 W Audio Power Amplifier

      Customizable Text

    • DS-TPR1A

      Active Single-Pair Receiver - Twisted Pair Format-A - Stainless - XLR microphone/line outp

      Customizable Text

    • DS-TPR2A

      Active Two-Pair Receiver - Twisted Pair Format-A - Stainless - Stereo RCA jack outputs

      Customizable Text

    • DS-TPR3A

      Active Three-Pair Receiver - Twisted Pair Format-A - Stainless - XLR & stereo RCA out

      Customizable Text

    • TX-TPR1A

      Active Single-Pair Receiver - Twisted Pair Format-A - Balanced line output

    • TX-TPR3A

      Active Three-Pair Receiver - Twisted Pair Format-A - Balanced line outputs

    • TX-TPR6A

      Passive Single-Pair Receiver - Twisted Pair Format-A - Balanced audio line output

    Format-A® Senders
    • D-TPS1A

      Active Single-Pair Sender - Twisted Pair Format-A - XLR microphone input with phantom

      Customizable Text

    • D-TPS2A

      Active Two-Pair Sender - Twisted Pair Format-A - stereo RCA jack inputs

      Customizable Text

    • D-TPS3A

      Active Three-Pair Sender - Twisted Pair Format-A - XLR microphone & stereo RCA in

      Customizable Text

    • DS-TPS1A

      Active Single-Pair Sender - Twisted Pair Format-A - Stainless - XLR microphone input w pha

      Customizable Text

    • DS-TPS2A

      Active Two-Pair Sender - Twisted Pair Format-A - Stainless - Stereo RCA jack inputs

      Customizable Text

    • DS-TPS3A

      Active Three-Pair Sender - Twisted Pair Format-A - Stainless - XLR microphone & stereo

      Customizable Text

    • FP-TPS4A

      Format-A Two-Pair Audio Sender

    • TX-TPS1A

      Active Single-Pair Sender - Twisted Pair Format-A - Balanced line input

    • TX-TPS3A

      Active Three-Pair Sender - Twisted Pair Format-A - Balanced line inputs

    • TX-TPS6A

      Passive Single-Pair Sender - Twisted Pair Format-A - Balanced audio line input

    Power Inserters / Breakout
    • FP-TP4PW

      Power Inserter - Twisted Pair - Four sets of outputs - Signal loop-through

    • TX-TP1PW

      Power Inserter - Twisted Pair - 1 set of outputs - Signal loop-through

    Format-A® Distributors
    • RU-TPDA

      Active Distributor - Twisted Pair Format-A - RDL Format-A input to Four outputs

    • RU-TPS4A

      Active Sender / Distributor - Twisted Pair Format-A - Three audio inputs to Four outputs

    Headphone Amplifiers
    • TP-HA1A

      Format-A Stereo Headphone Amplifier

    Related Products

    Flat-Pak™ Mounting Accessories
    • FP-HRA

      10.4" Rack Mount for FLAT-PAK Series Products

    • FP-RRB1

      Rear rack rail mounting kit for any FLAT-PAK module

    • FP-RRA

      Rack Adapter FLAT-PAK Series - 19" Fixed

    • FP-RRAH

      Rack Adapter FLAT-PAK Series - 19" Hinged

    DIN Rail Mounting Accessories

    Dimensions

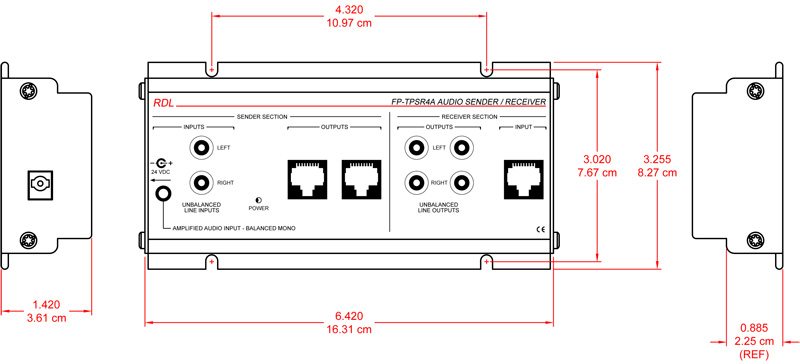

    FP-TPSR4A
