RDL®

RU-VDA4B

NTSC/PAL Video Distribution Amplifier - 1x4 - BNC

SKU: RU-VDA4B
  • Video Distribution with 4 Outputs
  • Adjustable Gain Amplification
  • Input LOOP OUT Jack
  • Video 1 Volt Signal Indicator
  • 10 MHz Bandwidth, NTSC or PAL
  • 1/3-Rack, High-Density Rack Mounting
Recommended Power Supply ( )
PS-24AS (USA)PS-24AX (International)
Category:

Description

The RU-VDA4B is the ideal choice in most applications where video signals need to be distributed. Video inputs and outputs are made on the front panel via BNC, PHONO, or type F jacks. Power connections are made using full-size barrier block terminals on the rear panel.



The RU-VDA4B has two jacks in the input stage. One jack is for the input signal; the other is a loop through output of the source signal.The input stage is bridging. If 75 Ω termination of the input signal is required, the termination is plugged onto the LOOP OUT jack.



Gain is user adjustable from the front panel. The GAIN potentiometer allows adjustment from -1 dB to +7 dB.

Specifications

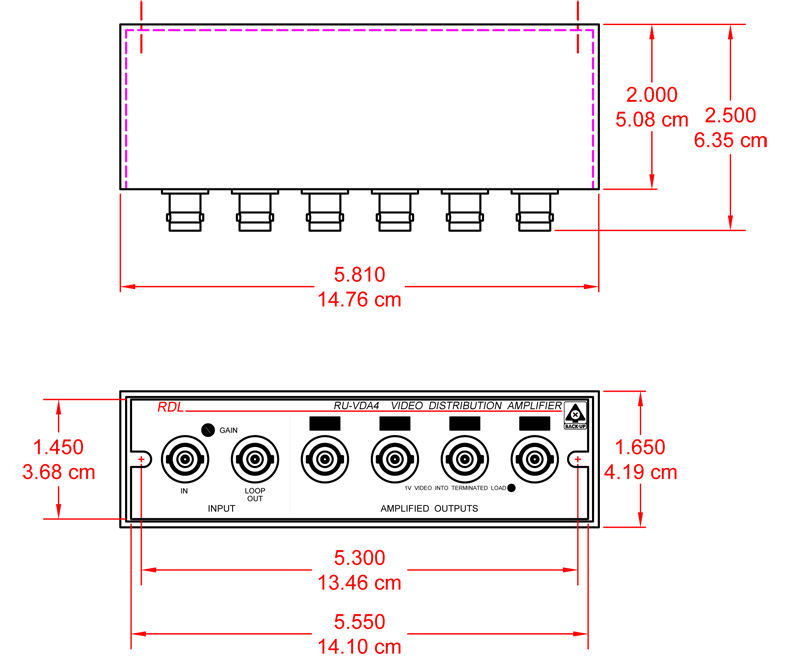

Dimensions:Height: 1.7 in (4.3 cm), Width: 5.8 in (15.0 cm), Depth: 3.0 in (7.7 cm)
Input:1 kΩ bridging 75 Ω line
Gain:-1 dB to +7 dB (0.9 to 2.25 V p-p, adjustable)
Outputs:1 LOOP OUT from input signal; 4 amplified outputs
Output Level:1 V p-p into 75 Ω
Frequency Response:10 Hz to 10 MHz (± 0.2 dB)
Noise:< -70 dB below (1 V p-p)
Output Isolation:> 40 dB
Differential Gain:0.1%
Differential Phase:0.1 degree (measured at 10% and 90 APL)
Connector Type:BNC, PHONO, or Type F
Ambient Operating Environment:0° C to 55° C
Power Requirement:GROUND-REFERENCED, 24 Vdc @ 60 mA
Package Type:Cardboard Box
WEEE weight:0.665 lbs.
Shipping Weight:0.93 lbs.
Tariff code:8543.70.9860
Package Dimensions:4.375 x 7 x 2.25 in.
