RDL®

ST-GLA1

Gated Line Amplifier - Noise Gate

SKU: ST-GLA1
  • Gated Line-level Preamplifier
  • Self-Gating to Suppress Unwanted Noise
  • Fast, Silent Audio Switching
  • Integral Single-ended Noise Reduction
  • Adjustable Gain and Threshold
  • Balanced or Unbalanced Input / Output
  • Open-Collector Logic Output
  • Recommended Power Supply ( Not Included )
    PS-24AS (USA)PS-24AX (International)
    Category:

    Description

    The ST-GLA1 is a self-gated line amplifier designed to be used in a variety of situations where it is desired to produce an automatically switched line-level signal with integral noise reduction. This module may be used in conjunction with other RDL® modules to configure automatic mixing systems or may be used alone as a noise gate. The open-collector slave output may be used to trigger other equipment or RDL modules. The versatility of ST-GLA1 applications range from complete automatic mixing system design to the addition of automatic gating to the inputs of conventional mixers or amplifiers to suppress accumulated or induced system noise.

    The input and output may be wired balanced or unbalanced. Two LED indicators are provided for adjustment.

    Specifications

    Input:10 kΩ balanced or unbalanced, bridging
    Input Level:-15 dBV to +4 dBu
    ON Gain:Adjustable to produce +4 dBu output for rated input signal range
    Audio Outputs (1):+4 dBu nominal, 150 Ω balanced, terminal block
    Headroom:> 16 dB (above +4 dBu)
    THD+N:< 0.2%
    Frequency Response:10 Hz to 30 kHz (± 0.25 dB)
    Residual Noise: 60 dB (referred to input signal level)
    Muting Threshold:−16 dB to −35 dB (adjustable, referred to +4 dBu)
    Detector Bandwidth:20 Hz to 5 kHz
    Ambient Operating Environment:0° C to 55° C
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 75 mA
    Package Type:Cardboard Box
    Package Dimensions:2 x 2 x 4 in.
    Shipping Weight:0.2 lbs.
    WEEE weight:0.145 lbs.
    Tariff code:8543.70.9860

    Related Products

    STICK-ON® Mounting Accessories
    • STR-H6A

      10.4" Rack Mount for 6 STICK-ON Series Products

    • ST-PBR4

      STICK-ON Mounting Bracket

    • ST-RRB1

      Rear rack rail mounting kit for any STICK-ON module

    • SMK-12

      STICK-ON Mounting Plate

    • STR-19A

      STICK-ON Series 19" Racking System - 12 modules

    • SR-12A

      STICK-ON Series 19" Mounting Rack - 12 modules

    • STR-19B

      STICK-ON Series 19" Racking System - 10 modules

    • SR-10

      STICK-ON Series 19" Mounting Rack - 10 modules

    General Mounting Accessories
    • DMK-5

      Detachable Mounting Kit for RDL Modules

    • SR-4

      STICK-ON Series Mounting Rack - 7 modules

    • MB-1

      Mounting Kit - RU, ST and TX Series

    TX™ Mounting Accessories
    • MB-1

      Mounting Kit - RU, ST and TX Series

    DIN Rail Mounting Accessories
    • DRA-35S

      STICK-ON DIN Rail Adapter - 1 module

    • DRA-35S6

      STICK-ON DIN Rail Adapter - 6 modules

    General Wiring Accessories
    • DTB

      STICK-ON® Series Detachable Terminal Block

    Dimensions

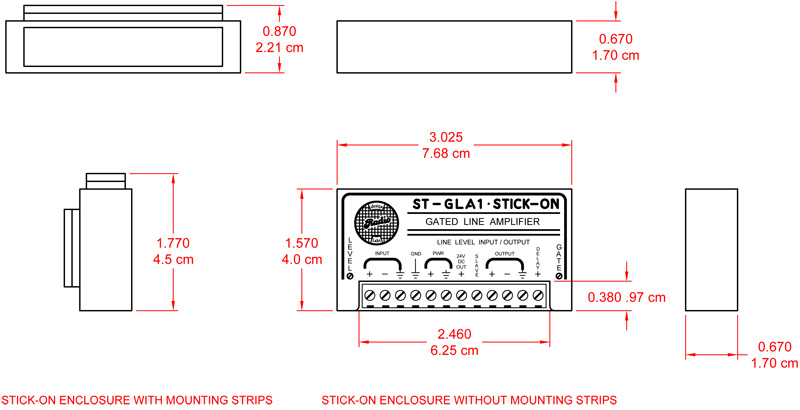

    ST-GLA1
