ST-PH1

Stereo Phono Preamplifier

SKU: ST-PH1
  • Stereo or Mono Phono Preamplifier
  • Balanced or Unbalanced Outputs
  • Outputs Drive Hi or Low Impedance Lines
  • Accurate, Low-Noise Preamplification
  • Adjustable Left and Right Output Levels
  • RDL® SupplyFlex™ Power Input Configuration
  • Recommended Power Supply ( Not Included )
    PS-24AS (USA)PS-24AX (International)
    Category:

    Description

    The ST-PH1 is a stereophonic phono preamplifier. Each of the two channel circuits is identical. The ST-PH1 has standard 47 kΩ impedance unbalanced phono cartridge inputs. Equalization follows the RIAA curve. Each output is capable of driving balanced or unbalanced, high or low impedance loads.

    RDL's SupplyFlex power input configuration is included in the ST-PH1. The power supply input may be fed from a floating (not ground-referenced) 24 Vdc power source, from a bipolar power supply (+/- 12 Vdc or +/-15 Vdc) or from a ground-referenced 24 Vdc power supply.

    Although phono inputs are provided on some equipment, optimum system performance is obtained when phonographs are preamplified as close to the turntable as possible, and then the line-level signals are fed to the next equipment in the chain. The convenience of the ST-PH1 is ideal for all such applications.

    Specifications

    Inputs (2):47 kΩ unbalanced
    Gain:40 to 60 dB @ 1 kHz (adjustable)
    Outputs (2):300 Ω to drive low or high impedance, balanced or unbalanced lines
    Output Level:+4 dBu nominal, adjustable; (unbalanced output 6 dB below balanced line level)
    THD:< 0.03% (10 Hz to 30 kHz, high impedance load)
    < 0.015% (10 Hz to 30 kHz, 600 Ω load)
    Frequency Response:RIAA curve
    Noise :< -75 dB (below +4 dBu)
    Headroom:18 dB (above +4 dBu)
    Ambient Operating Environment:0° C to 55° C
    Power Requirement:GROUND-REFERENCED or FLOATING, 24 Vdc @ 60 mA
    Package Type:Cardboard Box
    Package Dimensions:2 x 2 x 4 in.
    Shipping Weight:0.19 lbs.
    WEEE weight:0.14 lbs.
    Tariff code:8543.70.9860

    Related Products

    Phono
    • EZ-PH1

      Stereo Phono Preamplifier

    Related Products

    DIN Rail Mounting Accessories
    • DRA-35S

      STICK-ON DIN Rail Adapter - 1 module

    • DRA-35S6

      STICK-ON DIN Rail Adapter - 6 modules

    General Wiring Accessories
    • DTB

      STICK-ON® Series Detachable Terminal Block

    General Mounting Accessories
    • DMK-5

      Detachable Mounting Kit for RDL Modules

    • SR-4

      STICK-ON Series Mounting Rack - 7 modules

    • MB-1

      Mounting Kit - RU, ST and TX Series

    TX™ Mounting Accessories
    • MB-1

      Mounting Kit - RU, ST and TX Series

    STICK-ON® Mounting Accessories
    • STR-H6A

      10.4" Rack Mount for 6 STICK-ON Series Products

    • ST-PBR4

      STICK-ON Mounting Bracket

    • ST-RRB1

      Rear rack rail mounting kit for any STICK-ON module

    • SMK-12

      STICK-ON Mounting Plate

    • STR-19A

      STICK-ON Series 19" Racking System - 12 modules

    • SR-12A

      STICK-ON Series 19" Mounting Rack - 12 modules

    • STR-19B

      STICK-ON Series 19" Racking System - 10 modules

    • SR-10

      STICK-ON Series 19" Mounting Rack - 10 modules

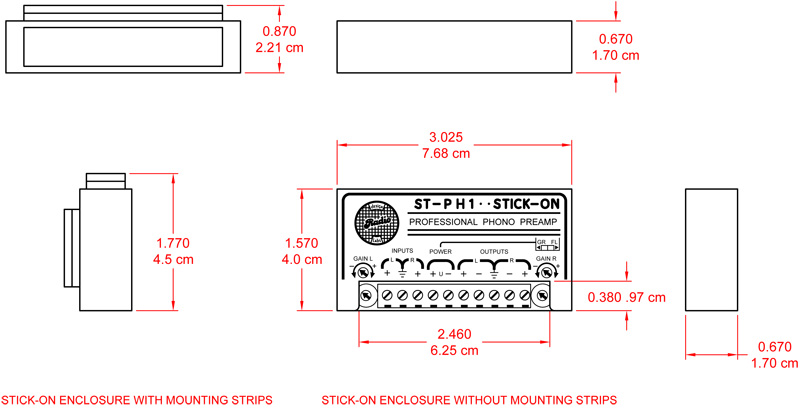

    Dimensions
