RDL®

TX-AT1S

Audio Isolation Transformer with Suppression

SKU: TX-AT1S
  • Studio Quality Bifilar Audio Transformer
  • Transient and RF Suppression
  • Terminal Block Transformer Connections
  • Galvanic Isolation
  • 1:1 Transformer Coupling
  • Transformer to Drive 600 Ohm Line
  • Convenience of RDL TXs
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
  • THD: < 0.035% ( 50 Hz to 20 kHz, +4 dBu input) 0.001% (Typ. 1 kHz, +4 dBu input)
  • Input / Output Level: +4 dBu, +22 dBu max.
  • CMRR: > 85 dB (balanced input, 50 to 60 Hz)
  • Specifications

    Ambient Operating Environment:0° C to 55° C
    Package Type:Cardboard Box
    Package Dimensions:2 x 2 x 4 in.
    Shipping Weight:0.65 lbs.
    WEEE weight:0.59 lbs.
    Tariff code:8543.70.9860

    Related Products

    Transformer Products
    • TX-AT1

      Audio Isolation Transformer - 600 Ω 1:1

    Related Products

    Accessories
    • RC-HPS1

      10.4" Rack Mount for Desktop Power Supply and TX Module

    TX™ Mounting Accessories
    • TX-HRA3

      10.4" Rack Mount for 3 TX Series Products

    • TX-RRB1

      Rear rack rail mounting kit for any TX series module

    • TX-RA5

      TX Series 19" Racking System - 5 modules 1RU

    • MB-1

      Mounting Kit - RU, ST and TX Series

    • DRA-35T

      TX Series DIN Rail Adapter

    DIN Rail Mounting Accessories
    General Mounting Accessories
    • MB-2

      Mounting Kit - RU and TX Series

    • SR-4

      STICK-ON Series Mounting Rack - 7 modules

    • MB-1

      Mounting Kit - RU, ST and TX Series

    • MB-3

      Kit to Mount ST, TX Series Modules on FP Panel

    Pole Mounting Accessories

    Dimensions

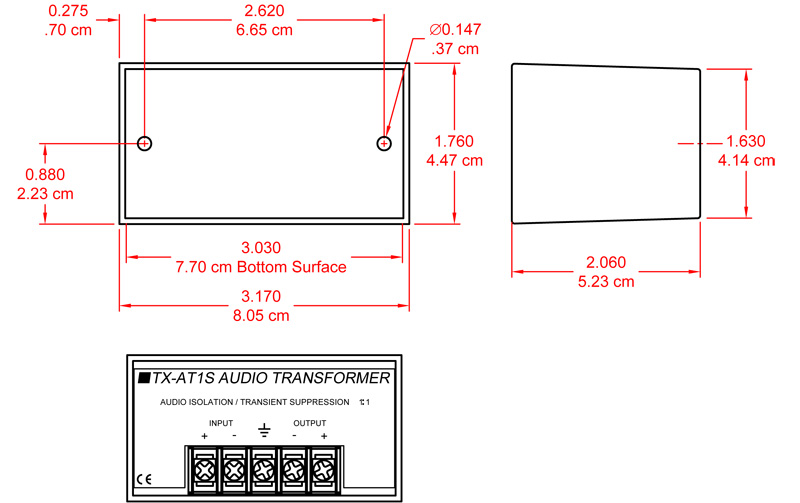

    TX-AT1S
