RDL®

D-RC2ST

2 Channel Remote Control for STICK-ON - Remote selection of audio or video sources

SKU: D-RC2ST
  • Remote Selection of 2 Audio Sources, Destinations or Functions
  • Single-Button Selection for Each Source
  • Open-collector Switching of 1 of 2 Module Functions
  • 3-wire or 4-wire Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL® Remote Controls
  • How to Customize
    Category:

    Description

    The front panel of the D-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.

    In a typical installation, the D-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the D-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.

    Specifications

    Selectors (2):Momentary pushbuttons, (1 for each channel)
    Indicators (2):Red LEDs, (indicates channel selected)
    Connections:Detachable terminal block; Power input; open-collector outputs (25 mA current limited)
    Ambient Operating Environment:-10° C to 55° C
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 30 mA

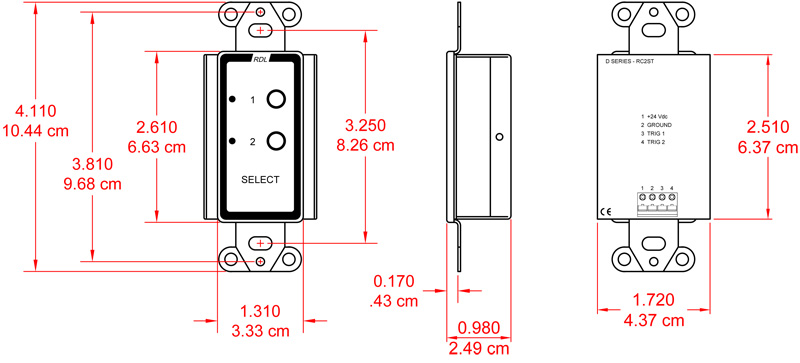

    Mounting:Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
    Package Type:Cardboard Box
    Package Dimensions:3.625 x 4.625 x 2.125 in.
    Shipping Weight:.365 lbs.
    WEEE weight:0.215 lbs.
    Tariff code:8543.70.9860
