RDL®

ST-RX2

Audio Routing Switcher - 1x2

SKU: ST-RX2
  • Routing of a Line-Level Source
  • Audio Switched to One of Two Destinations
  • Silent Audio Switching
  • Balanced or Unbalanced Routing
  • Switching by Open-Collector Logic
  • Recommended Power Supply ( Not Included )
    PS-24AS (USA)PS-24AX (International)

    Description

    The ST-RX2 has a single line-level audio input and two line-level audio outputs. In the absence of a control input, the NORMAL module output is fed from the audio input. When the TRIG control terminal is connected to ground, the input audio is fed to the SELECT output and the NORMAL output is switched off. When the TRIG terminal is again disconnected from ground, then the SELECT output is turned off and the NORMAL output is fed from the input. The module contains no relays or other mechanical devices. The control circuits utilize solid-state switching to route the input signal to one of the balanced output line drivers with off attenuation better than 80 dB at all audio frequencies. Soft switching is used to eliminate clicks or pops.

    The control current required at the TRIG terminal is so minimal (< 0.5 mA) that the ST-RX2 can be controlled from nearly any source from switches to logic circuits.

    The ST-RX2 may be controlled using the RDL D-RC2ST or the D-RT2 remote controls.

    Specifications

    Input:20 kΩ balanced, +4 dBu nominal
    Audio Outputs (2):+4 dBu nominal, 150 Ω balanced, terminal block
    Switching Time:Fast
    Time required for NORMAL output to turn off:10 us
    Time required for NORMAL output to turn on:15 us
    Time required for SELECT output to turn off:15 us
    Time required for SELECT output to turn on:20 us
    Control Signal:TRIG terminal must be externally connected to ground.
    Control Current:0.5 mA
    Headroom:> 18 dB (above +4 dBu)
    THD+N: 45 dB (100 Hz)
    Frequency Response:15 Hz to 20 kHz (± 0.5 dB into 10 kΩ bridging input)
    30 Hz to 20 kHz (± 0.5 dB into 600 Ω)
    Noise:< -85 dB (below +4 dBu);
    -90 dB (typical)
    ON Gain:Unity (Balanced input and output)
    OFF Attenuation:> 80 dB (Either output); > 95 dB at 1 kHz
    Indicators (2):LED showing active output (left LED=NORMAL; right LED=SELECT)
    Ambient Operating Environment:0° C to 55° C
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 40 mA
    Package Type:Cardboard Box
    Package Dimensions:2 x 2 x 4 in.
    Shipping Weight:0.2 lbs.
    WEEE weight:0.15 lbs.
    Tariff code:8543.70.9860

    Related Products

    Switching & Control
    • ST-SSR1

      Line-Level Audio Switch - 2x1

    Related Products

    STICK-ON® Mounting Accessories
    • STR-H6A

      10.4" Rack Mount for 6 STICK-ON Series Products

    • ST-PBR4

      STICK-ON Mounting Bracket

    • ST-RRB1

      Rear rack rail mounting kit for any STICK-ON module

    • SMK-12

      STICK-ON Mounting Plate

    • STR-19A

      STICK-ON Series 19" Racking System - 12 modules

    • SR-12A

      STICK-ON Series 19" Mounting Rack - 12 modules

    • STR-19B

      STICK-ON Series 19" Racking System - 10 modules

    • SR-10

      STICK-ON Series 19" Mounting Rack - 10 modules

    General Mounting Accessories
    • DMK-5

      Detachable Mounting Kit for RDL Modules

    • SR-4

      STICK-ON Series Mounting Rack - 7 modules

    • MB-1

      Mounting Kit - RU, ST and TX Series

    DIN Rail Mounting Accessories
    • DRA-35S

      STICK-ON DIN Rail Adapter - 1 module

    • DRA-35S6

      STICK-ON DIN Rail Adapter - 6 modules

    General Wiring Accessories
    • DTB

      STICK-ON® Series Detachable Terminal Block

    TX™ Mounting Accessories
    • MB-1

      Mounting Kit - RU, ST and TX Series

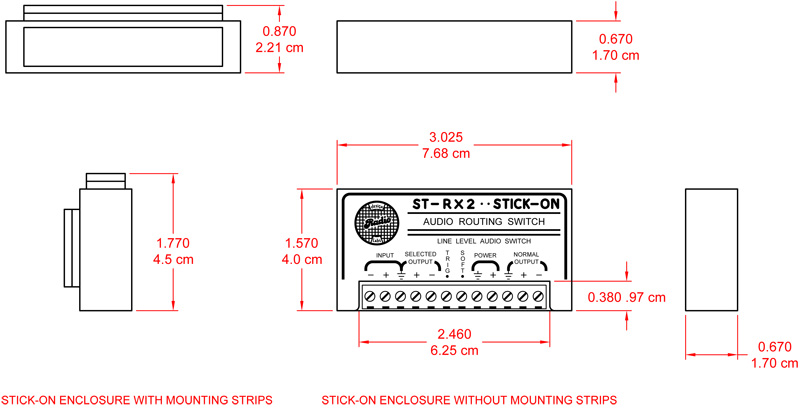

    Dimensions
