RDL®

SF-DN4

Digital Audio to Network Interface

SKU: SF-DN4
  • Converts Two Left/Right Digital Audio Sources to Four Dante Network Audio Signals
  • AES/EBU or S/PDIF Coaxial or Optical Inputs
  • Supports Input Sampling Rates from 32 kHz to 192 kHz
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Digital Signal Lock Indicator for Valid Inputs
  • Transformer-Isolated AES/EBU Input
  • Digital Audio Sources Remain in the Digital Domain through the Dante Network Output
  • Special Software Not Required for Module Setup
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex® Rack Mounting or Surface Mounting
  • Category:

    Description

    The SF-DN4 is a digital audio interface that converts two stereo digital audio sources to four Dante network audio channels. The SF-DN4 automatically detects a valid input on any of the three input jacks: S/PDIF optical, S/PDIF coaxial, or AES/EBU XLR. The input is decoded, re-clocked and transmitted to the Dante network. A yellow front-panel LOCK LED indicates a valid source received without any lock errors. Special software is not required to configure the module. The SF-DN4 is a professional grade product for studio quality performance.

    The SF-DN4 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

    The SF-DN4 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

    Specifications

    Network Connector:RJ45 with Link and Speed indicators
    Digital Audio Ethernet Protocol:Dante
    Transmission Rate:100 Mbps
    Input Sample Rates Supported:32 kHz to 192 kHz
    Output (Dante) Sample Rates Supported:44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
    Bit Depth Supported:24 bits
    Inputs (6):110 Ω AES/EBU XLR, transformer isolated (2); 75 Ω S/PDIF RCA jack (2); S/PDIF optical (2)
    Indicators (5):Ethernet Link and Speed (2, rear panel); Sync (front panel); Lock (2, front panel)
    Ambient Operating Environment:0° C to 50° C
    Power Requirement:PoE Class 0, IEEE 802.3af

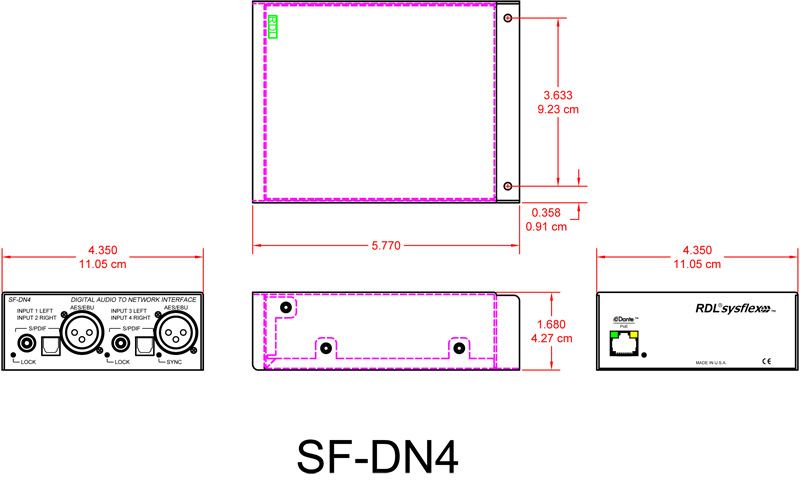

    Dimensions:4.23" (10.74 cm) W; 1.68" (4.27 cm) H; 5.77" (14.66 cm) D
    Package Type:Cardboard Box
    Package Dimensions:7 x 4.375 x 2.25 in.
    Shipping Weight:1.375 lbs.
    WEEE weight:1.16 lbs.
    Tariff code:8543.70.9100
