RDL®

SF-NP40D

Network to 40 W Stereo Power Amplifier

SKU: SF-NP40D
  • Converts Two Dante Network Audio Signals to two 20 W Outputs into 8 Ohms
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • 0 dBFS Input for 20 W per channel into 8 Ohms or 15 W per channel into 4 Ohms
  • Special Software Not Required for Module Setup
  • LED Indicator for Network Sync
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • Included Power Supply 100 to 240 VAC, 50/60 Hz, 1.5A Input; 24 Vdc Output
  • SF-NP40D includes North American Cord; SF-NP40DE excludes Power Cord
Recommended Power Supply ( Included )
PS-24V3A (USA)PS-24V3 (International)

Description

The SF-NP40D is an audio power amplifier that converts two Dante network audio channels to two 4 Ohm or 8 Ohms amplified outputs. Each output provides 20 watts into 8 ohms for a network digital audio level of 0 dBFS. Special software is not required to configure the module. A front-panel blue LED illuminates when the SF-NP40D is powered from its included external 24 Vdc power supply. The module is equipped with both thermal and output short-circuit protection. The high-efficiency Class D output stages produce minimal heat for all levels of expected voice or music modulation. Valid synchronization to the Dante network is indicated by a green LED visible from the front of the unit. The SF-NP40D is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

Specifications

Network Connector:RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:Dante
Transmission Rate:100 Mbps
Sample Rates Supported:44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported:24 bits
Reference Level:0 dBFS = 20 W into 8 Ω
Outputs (2):Balanced, detachable terminal block
Output Level (maximum):0 dBFS = 20 W into 8 Ω per channel; 15 W into 4 Ω
Load impedance:4 Ω or 8 Ω, switch-selectable
Frequency Response:20 Hz to 20 kHz (+ 0/-6 dB)
THD+N:< 0.1% (20 Hz to 20 kHz,+4 dBu/-20 dBFS); 0.015% at 1 kHz (typ)
Noise:< -80 dB (below 20 W / 8 Ω)
Crosstalk:< -75 dB (1 kHz, output to output)
Headroom above -20 dBFS:20 dB
Indicators (3):Ethernet Link and Speed (2, rear panel); Sync (front panel)
Ambient Operating Environment:0° C to 40° C
Power Supply (included):100 to 240 Vac, 50-60 Hz, 1.3 A, IEC C14; Output to module: 24 Vdc, 2 A, Ground-referenced
Specification Conditions:Gain/Level: ± 1 dB

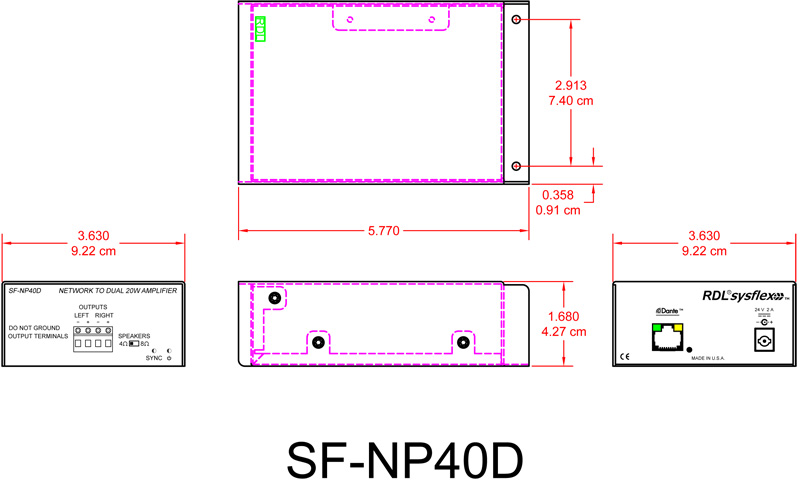

Dimensions:3.51" (8.92 cm) W; 1.68" (4.27 cm) H; 5.77" (14.66 cm) D
Package Type:Cardboard Box
Package Dimensions:6 x 6 x 2.625 in.
Shipping Weight:2 lbs.
WEEE weight:1.77 lbs.
Tariff code:8543.70.9100
